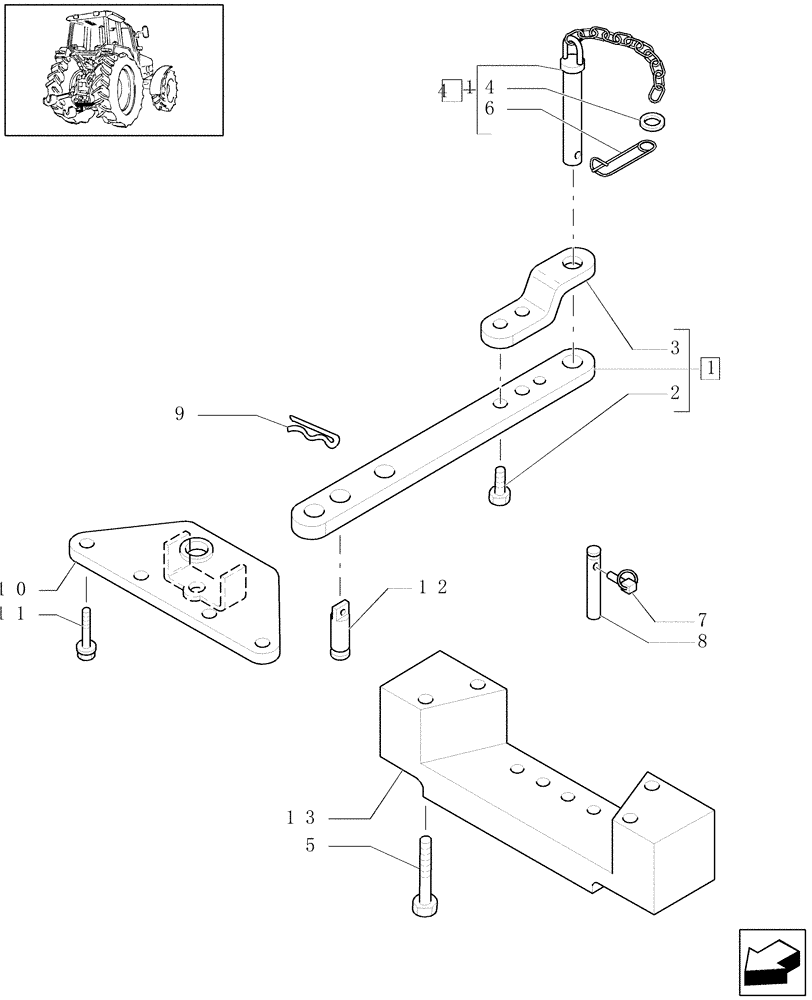

Запчасти Case IH MXU110 (1.89.0) - (VAR.907) DRAWBAR FOR SLIDING SUPPORT (09) - IMPLEMENT LIFT

1

82029085

DRAWBAR

Includes Ref.2, 3

1шт.

2

11125234

SCREW,Hex, M20 x 75mm, Cl 10.9

2шт.

3

82026931

SUPPORT,254mm L x 75mm W x 30mm Thk, 70mm Offset

1шт.

4

5163732

PIN,32mm OD x 182mm L

Includes Ref.6, 14

1шт.

5

16050834

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

4шт.

6

5152004

HAIR PIN COTTER,195mm L

1шт.

7

82014909

LOCK PIN,5.5mm OD

2шт.

8

82015207

PIN,16mm OD x 141mm L

2шт.

9

82000094

SPRING,40mm OD x 142mm L

1шт.

10

82020237

BRACKET

1шт.

11

82020186

BOLT,Flng, M16 x 1.5 x 120mm, Cl 12.9

4шт.

12

82029083

PIN,28.5mm OD x 124mm L

1шт.

13

82039556

SUPPORT

1шт.

14

44901192

SNAP RING,25mm ID

1шт.
