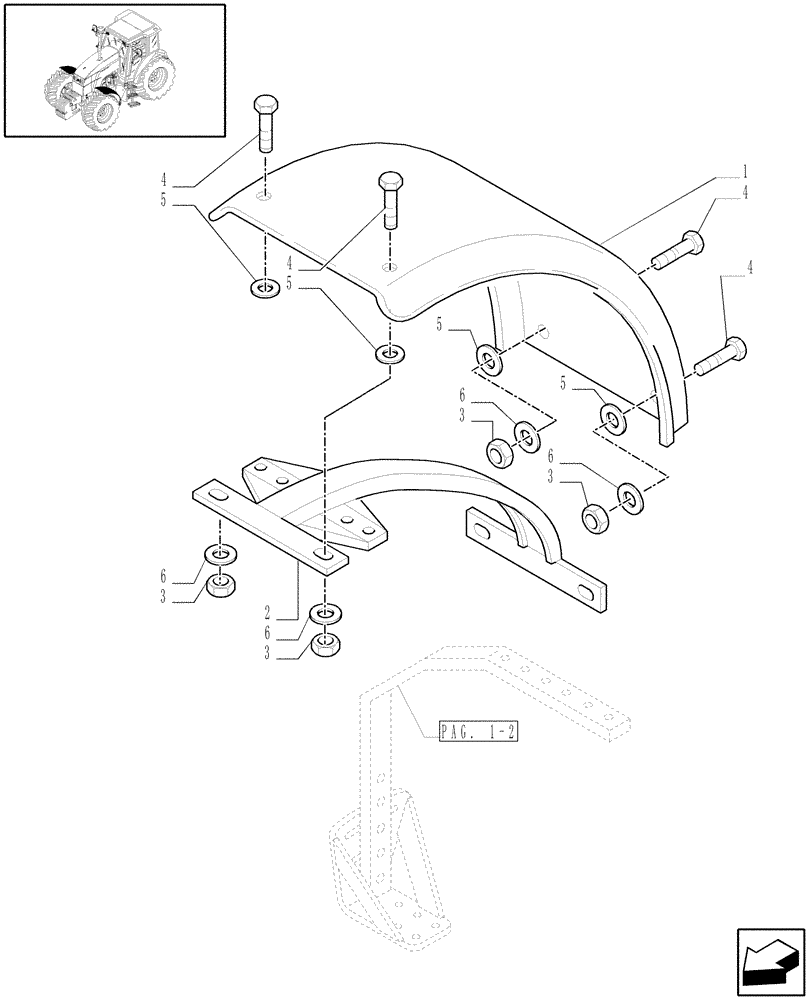

Запчасти Case IH MXU110 (1.87.4/03[03]) - (VAR.024-025) DYNAMIC FRONT FENDERS (420, WIDE) (JAPAN) (08) - SHEET METAL

1

87525285

MUD DEFLECTOR

480 mm, Var. 511

2шт.

2

87554986

SUPPORT

2шт.

3

16104511

NUT,M8 x 1.25, Cl 8.8

8шт.

4

83990985

BOLT,M8 x 1.25 x 25mm

Carriage, G4.6, M8 x 1.25 x 25

8шт.

5

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

8шт.

6

84145763

WASHER,14mm ID x 41.3mm OD x 2.64mm Thk

7/16"

8шт.
