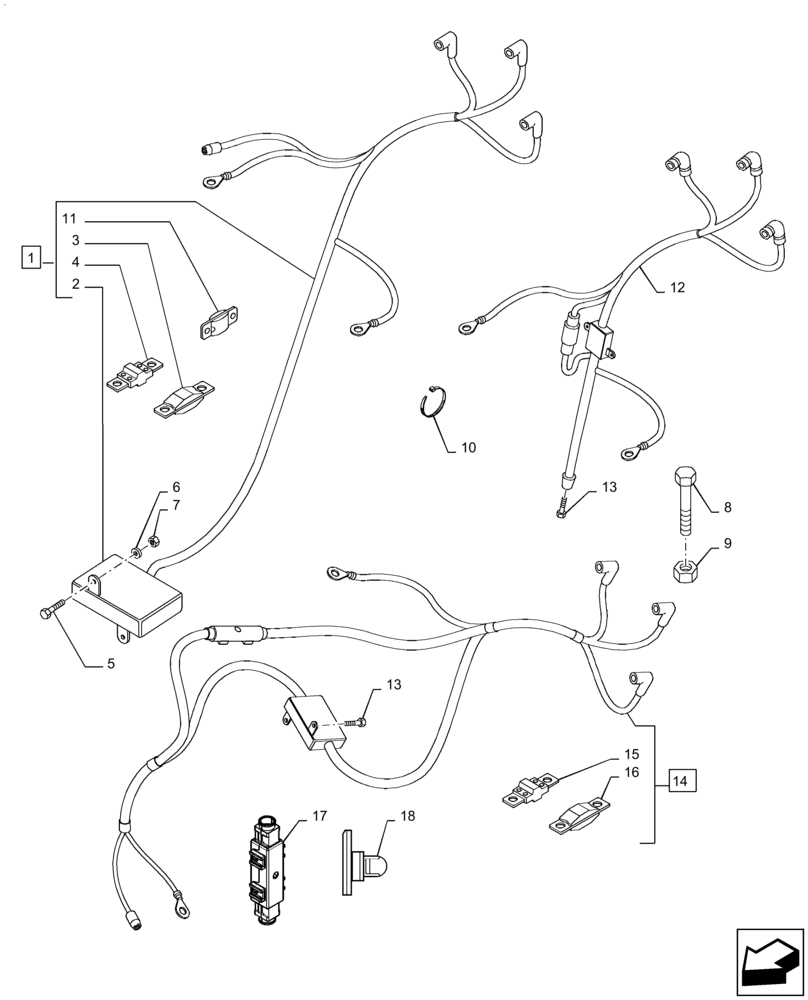

Запчасти Case IH MXU110 (1.75.4[05]) - BATTERY CABLE (06) - ELECTRICAL SYSTEMS

1

82033112

WIRE HARNESS

Incl.2-4, BATTERY TO CAB SUPPLY, Serial Range: -C5139

1шт.

2

82022800

FUSE BOX

1шт.

3

82023624

FUSE,250A, Mega

250A

1шт.

4

82023625

FUSE

30A

1шт.

5

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

, Serial Range: -C5139

2шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

, Serial Range: -C5139

2шт.

7

353308

NUT,M6 x 1.0, Cl 8

, Serial Range: -C5139

1шт.

8

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

9

14048211

NUT,M8 x 1.25, Cl 8

3шт.

10

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

1шт.

11

82033972

FUSE,250A

250A

1шт.

12

87324240

WIRE HARNESS

Incl.13, BATTERY TO CAB SUPPLY, Serial Range: D5139-C5522

1шт.

12

87387556

WIRE HARNESS

Incl.13, BATTERY TO CAB SUPPLY, Serial Range: D5522-C5597

1шт.

13

81866078

BOLT

, Start Serial: D5139

1шт.

14

87608615

WIRE HARNESS

Incl.13, Start Serial: D5597

1шт.

15

82033972

FUSE,250A

250 AMP

1шт.

16

87390344

FUSE,30A, MIDIVAL

30 AMP

1шт.

17

82027575

FUSE HOLDER

Fuse Holder

1шт.

18

82029106

BRACKET

Clip

1шт.
