Запчасти Case IH MXU110 (1.75.4[03]) - FRONT CONDUCTOR (06) - ELECTRICAL SYSTEMS

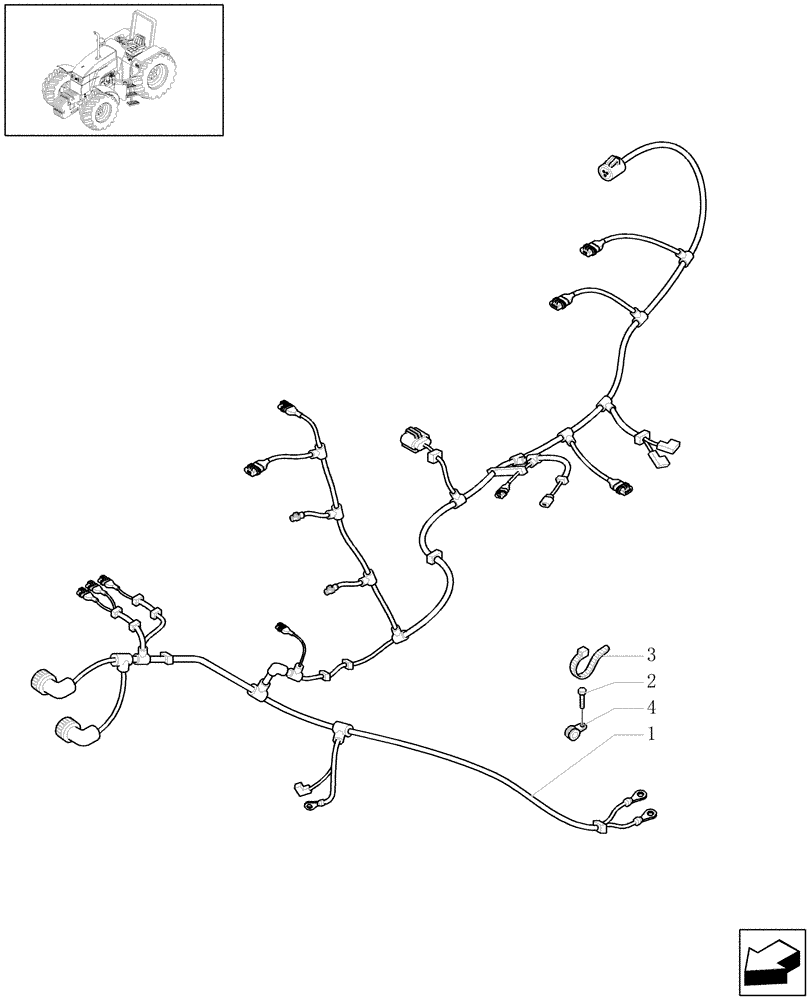

Схема запчастей Case IH MXU110 - (1.75.4[03]) - FRONT CONDUCTOR (06) - ELECTRICAL SYSTEMS
3
4
1
2

Артикул

Название

Примечание

Количество

1

82037112

WIRE HARNESS

STD Version, MXU100, MXU110, Serial Range: -C7071

1шт.

1

87305183

WIRE HARNESS

STD Version, MXU100, MXU110, Start Serial: D7071

1шт.

1

82037113

WIRE HARNESS

STD Version, MXU115, MXU130, Serial Range: -C7071

1шт.

1

87305185

WIRE HARNESS

STD Version, MXU115, MXU130, Start Serial: D7071

1шт.

1

82039437

WIRE HARNESS

, Serial Range: -C7071

1шт.

W/Front HPL and PTO and W/Grid Heather

1шт.

1

87305182

WIRE HARNESS

, Start Serial: D7071

1шт.

W/Front HPL and PTO and W/Grid Heather

1шт.

1

82039436

HARNESS

, Serial Range: -C7071

1шт.

W/Front HPL and PTO and W/Grid Heather

1шт.

1

87305184

WIRE HARNESS

, Start Serial: D7071

1шт.

W/Front HPL and PTO and W/Grid Heather

1шт.

2

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

2

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

, Serial Range: -C7071

2шт.

2

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

, Start Serial: D7071

2шт.

3

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

4

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

26 mm dia.

3шт.

4

10441990

CLAMP,24mm, Coat, 7mm Bolt Hole, P Type

D=24

2шт.

Выбрано товаров: 18
