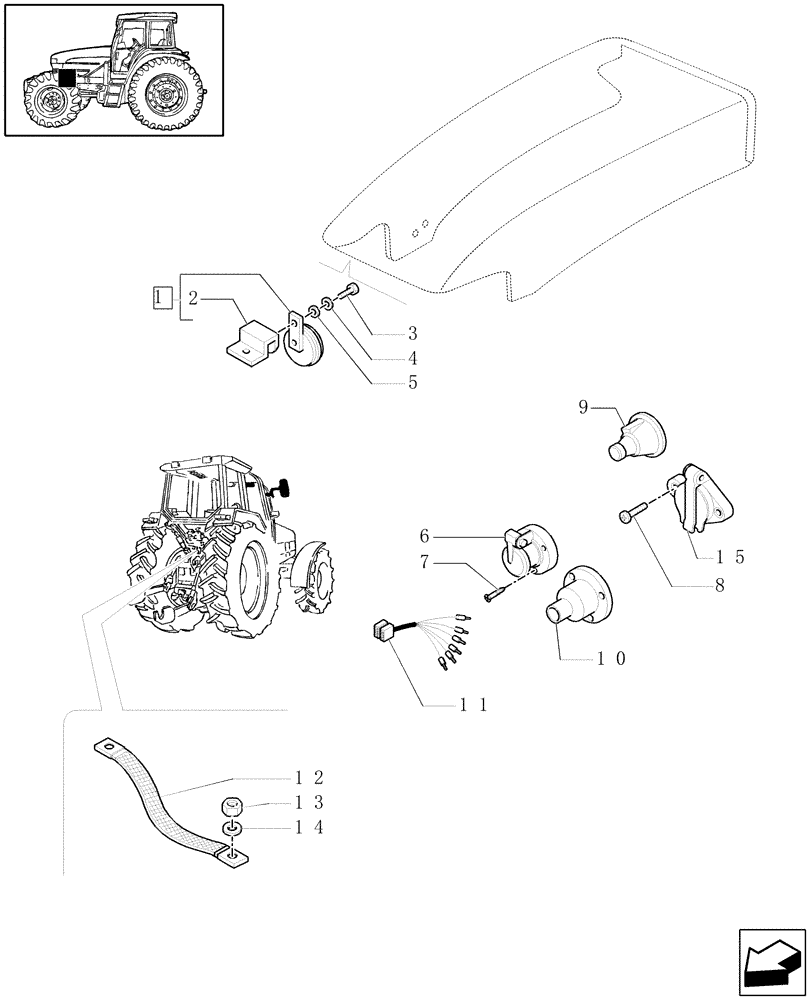

Запчасти Case IH MXU110 (1.75.1) - ELECTRIC SYSTEM, HORN & HORN MOUNTING (06) - ELECTRICAL SYSTEMS

1

82000694

HORN

Includes Ref.2, Serial Range: -C5428

1шт.

1

87551747

HORN,12V

, Start Serial: D5428

1шт.

2

82001658

BRACKET

1шт.

3

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

4

10516474

LOCK WASHER

D=6

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

6

83959716

POWER SOCKET,7 Pins

1шт.

7

15645901

SELF-TAP SCREW,M10 x 32mm

#10 x 32

3шт.

8

83986375

SELF-TAP SCREW

5/16"-18 x 3/4"

2шт.

9

83990207

BOOT

VAR.007

1шт.

10

82013268

BOOT

1шт.

11

82037899

WIRE HARNESS

1шт.

12

82033449

CABLE

, Serial Range: -C5277

1шт.

12

87365128

GROUND CABLE

, Start Serial: D5277

1шт.

13

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

1шт.

14

12644905

WASHER,14.4mm ID x 32mm OD x 4mm Thk

1шт.

15

82001021

POWER SOCKET,7 Pins

VAR. 007

1шт.
