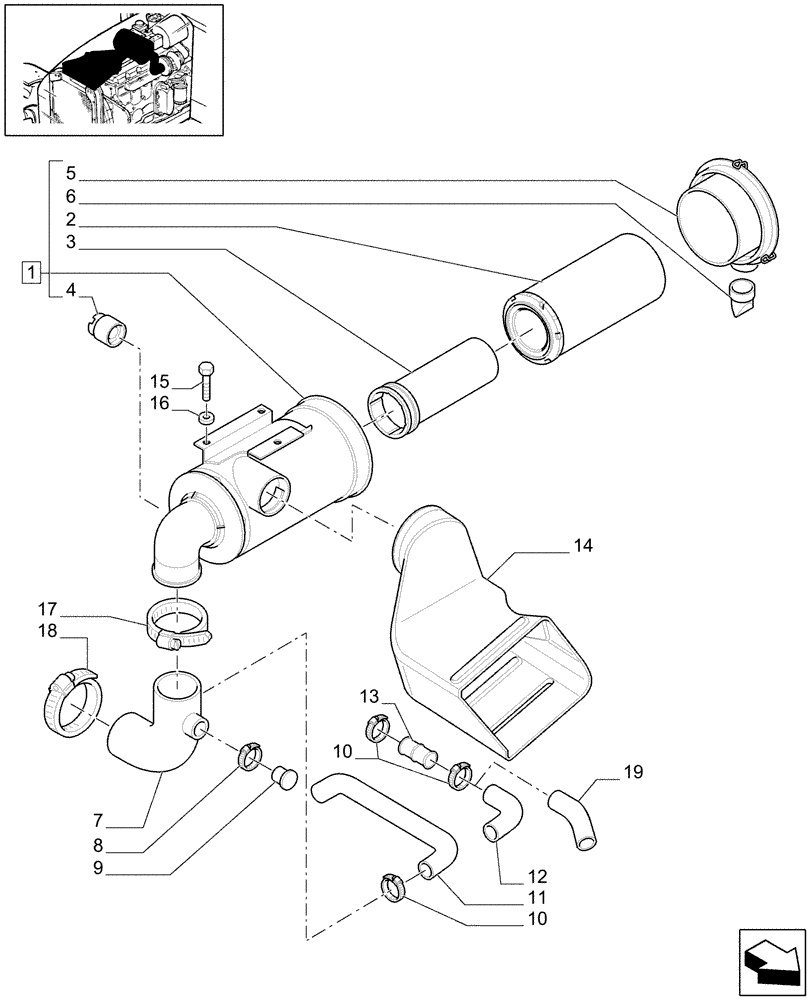

Запчасти Case IH MXU110 (1.19.1[01]) - DRY AIR FILTER - PIPES (02) - ENGINE EQUIPMENT

1

82021432

AIR CLEANER

Includes Ref. 2, 3, 4, 5, 6

1шт.

2

82034605

AIR FILTER

Outer

1шт.

3

82034608

AIR FILTER

Inner

1шт.

4

82029621

INDICATOR

1шт.

5

87301829

COVER

1шт.

6

87301825

DUST VALVE

1шт.

7

82038508

AIR DUCT

MXU110

1шт.

7

87318745

AIR DUCT

MXU100

1шт.

8

13387570

HOSE CLAMP

1шт.

9

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

10

20-32MM

3шт.

11

82033117

FLEXIBLE HOSE,22.23 mm ID x 250.00 mm, SAE R2 Type 2

MXU110

1шт.

12

82033116

FLEXIBLE HOSE,22.23 mm ID x 86.00 mm, SAE 30R2 Type 2

MXU100, Serial Range: -C5494

1шт.

13

82029355

ADAPTER

1шт.

14

87326358

AIR DUCT

1шт.

15

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

16

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

17

82036459

CLAMP,90mm - 110mm

90-110MM

1шт.

18

87313786

HOSE CLAMP,Worm Gear, 70mm/90mm x 12mm W, CST ZND

70-90MM, MXU110

1шт.

18

82039349

CLAMP,60mm ID - 80mm ID x 12mm W, Unlined

60-80MM, MXU100

1шт.

19

87534950

FLEXIBLE HOSE,22.23 mm ID x 93.00 mm, SAE 30R2

MXU100, Start Serial: D5494

1шт.
