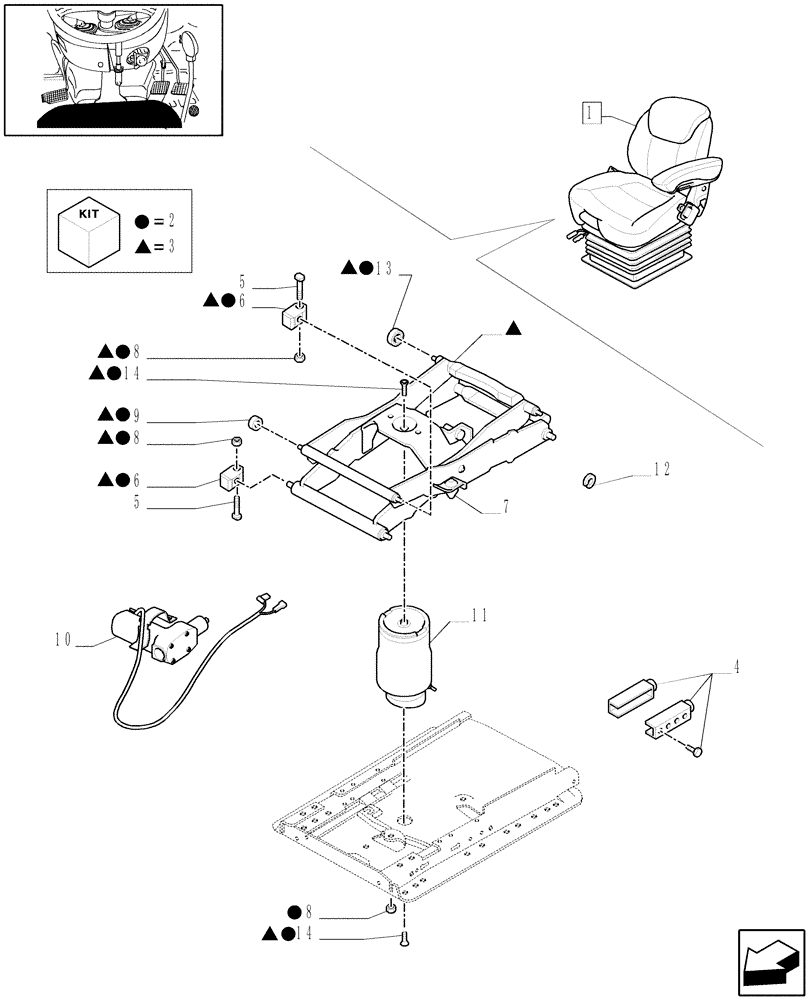

Запчасти Case IH MXU110 (1.93.3/ E[05]) - "GRAMMER" DELUXE SEAT WITH BELTS AND SWITCH - BREAKDOWN - W/CAB - D5424 (10) - OPERATORS PLATFORM/CAB

1

87519645

DRIVER SEAT

Assy

1шт.

2

82848105

KIT

Set of Wear Parts

1шт.

3

87396449

SUSPENSION

Incl. 6, 7, 8, 9, 10, 13, 14, 15, 19, 24, 26, 27

1шт.

4

87281748

STOP

1шт.

5

82035059

SCREW

4шт.

6

87567830

THRUST BEARING

4шт.

7

71485476

BUMPER

2шт.

8

82034883

NUT,CL 8.8

1шт.

9

82035130

ROLLER

2шт.

10

254780A1

AIR COMPRESSOR

1шт.

11

87567831

SEAT ACCESSORY

D=13

1шт.

12

82035129

WASHER

D=10

4шт.

13

82035057

ROLLER

4шт.

14

82035085

SCREW,M8 x 20mm

8x20 Torx

2шт.
