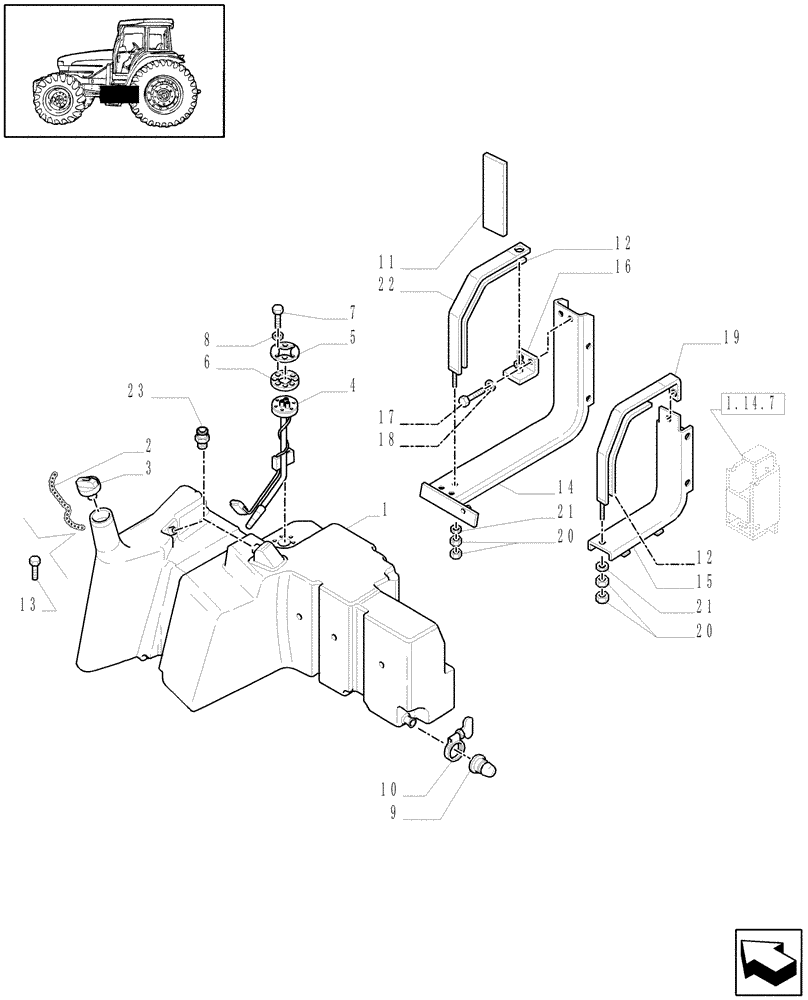

Запчасти Case IH MXU110 (1.14.0[01]) - FUEL TANK AND RELATED PARTS - C5533 - BEFORE 20-SEP-2006 (02) - ENGINE EQUIPMENT

1

82034502

FUEL TANK

, Years: -15-APR-04

1шт.

1

82039232

FUEL TANK

, Years: -15-APR-04

1шт.

1

87301775

FUEL TANK

, Years: 16-APR-04-11-MAY-05

1шт.

1

87341951

FUEL TANK

, Years: 12-MAY-05-14-SEP-05

1шт.

1

87353548

FUEL TANK

, Start Year: 15-SEP-05

1шт.

2

82012533

LINK CHAIN

1шт.

3

82012210

FILLER CAP

Non-Locking

1шт.

4

82021848

FUEL GAUGE

, Years: -14-SEP-05

1шт.

see the picture on the part detail window to order the correct part number

1шт.

4

82037163

FUEL GAUGE

, Years: -14-SEP-05

1шт.

see the picture on the part detail window to order the correct part number

1шт.

4

87353561

FUEL GAUGE

, Start Year: 15-SEP-05

1шт.

see the picture on the part detail window to order the correct part number

1шт.

5

82019709

SEALING RING,97.97mm ID x 100.95mm OD x 2.87mm Thk

1шт.

6

82012056

GASKET,1.5mm Thk

1шт.

7

10978024

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

6шт.

8

10615371

LOCK WASHER,Ext Tooth, M5

6шт.

9

83998666

CAP

1шт.

10

82013014

HOSE CLAMP

1шт.

11

82012920

RUBBER PAD,635mm L

1шт.

12

82013475

RUBBER PAD

2шт.

13

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

1шт.

14

82033330

SUPPORT

1шт.

15

82033333

SUPPORT

1шт.

16

82027923

SUPPORT

1шт.

17

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

18

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

19

82013785

BRACKET

606MM

1шт.

20

100016

NUT,M10 x 1.5, Cl 8

8шт.

21

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

22

82020723

SECURING STRAP

696MM long, Plus 115 Thread

1шт.

23

82035326

ADAPTER

2шт.
