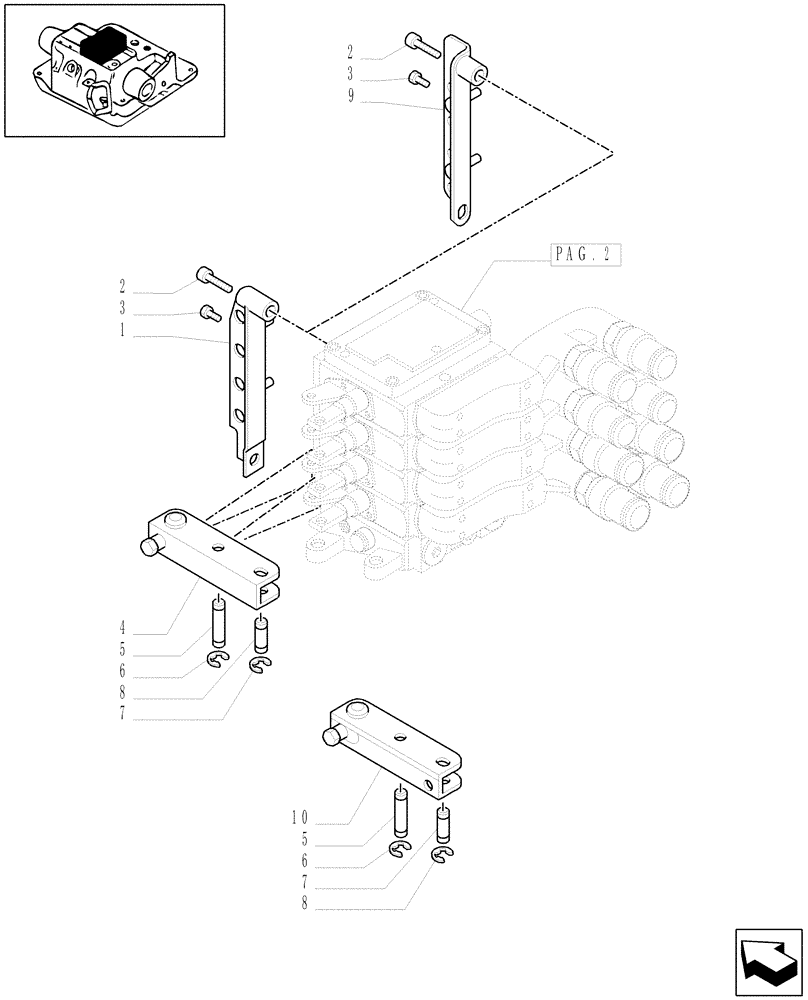

Запчасти Case IH MXU110 (1.82.7/43[01]) - (VAR.009) 4 REMOTES(2NC+2CONFIG) FOR CCLS PUMP FOR MDC AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

1

5197908

BRACKET

, Serial Range: -C5311

1шт.

2

14306731

HEX SOC SCREW,M8 x 1.25 x 40mm, Cl 10.9, Full Thd

1шт.

3

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

, Serial Range: -C5311

1шт.

3

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

, Start Serial: D5311

1шт.

4

47128010

LEVER

, Serial Range: -C5311

4шт.

5

5193177

PIN,6mm OD x 29.48mm L

4шт.

6

11063971

SPRING CLIP,M6

D=6

8шт.

7

11065676

SNAP RING,M8, Ext

8шт.

8

5113008

PIN,8mm OD x 26mm L

D=8X26

4шт.

9

87390551

STOP

, Start Serial: D5311

1шт.

10

87358094

LEVER

, Start Serial: D5311

4шт.
