(1.82.7/36[05]) - (VAR.719) 2 CONTROL VALVES - CONTROL VALVE AND ASSOCIATED PARTS - D5504

Запчасти Case IH MXU110 (1.82.7/36[05]) - (VAR.719) 2 CONTROL VALVES - CONTROL VALVE AND ASSOCIATED PARTS - D5504 (07) - HYDRAULIC SYSTEM

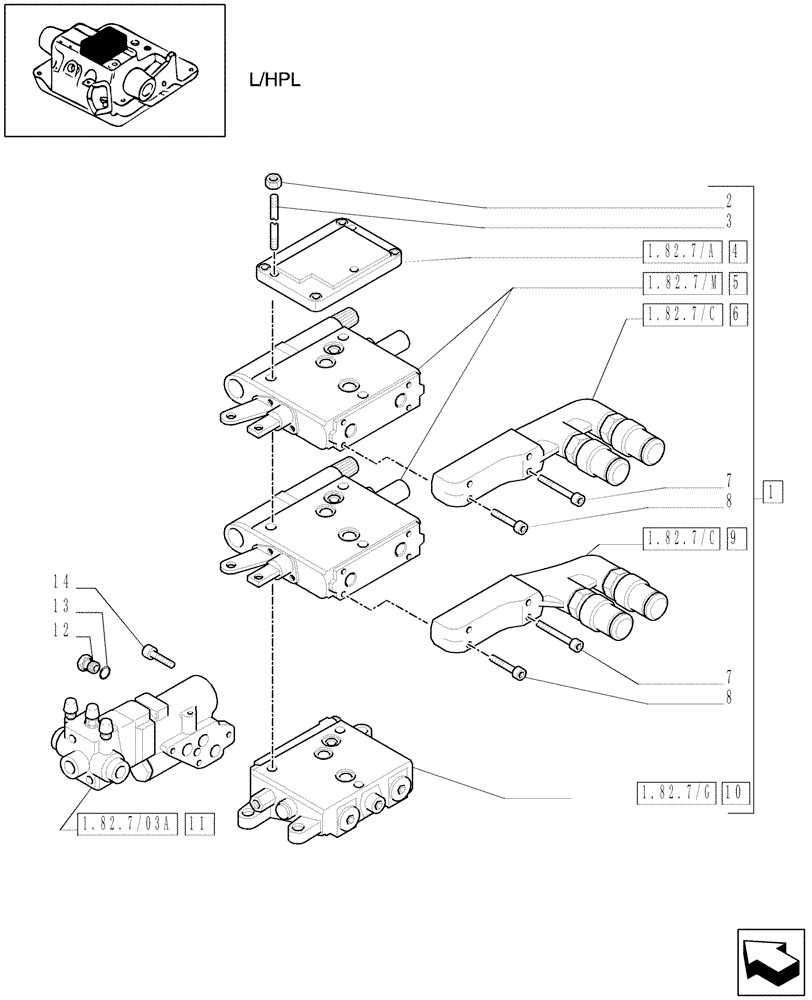

Схема запчастей Case IH MXU110 - (1.82.7/36[05]) - (VAR.719) 2 CONTROL VALVES - CONTROL VALVE AND ASSOCIATED PARTS - D5504 (07) - HYDRAULIC SYSTEM
13
1.82.7/a
14
6
3
9
1.82.7/c
1
1.82.7/g
1.82.7/c
12
2
7
8
11
8
4
10
5
7
1.82.7/03a
1.82.7/m
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87546164

CONTROL VALVE

Assy., Open Center, L/HPL

1шт.

2

5195169

NUT,M8

3шт.

3

5195170

BOLT

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

Directional

2шт.

87546169R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 all (7/03-)

2шт.

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

87381963

QUICK MALE COUPLING

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

5192186

DISTRIBUTOR

1шт.

11

5192069

BRAKE VALVE

1шт.

12

47131496

PLUG,Hex, M12 x 1

M12X1

1шт.

13

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

14

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

14

14359424

SCREW,M8 x 75mm, Cl 8.8

M8X75

2шт.
