(1.82.7/30[01]) - (VAR.378) 4 CCLS (EDC) ELECTR. CONTR. VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS - C5504

Запчасти Case IH MXU110 (1.82.7/30[01]) - (VAR.378) 4 CCLS (EDC) ELECTR. CONTR. VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM

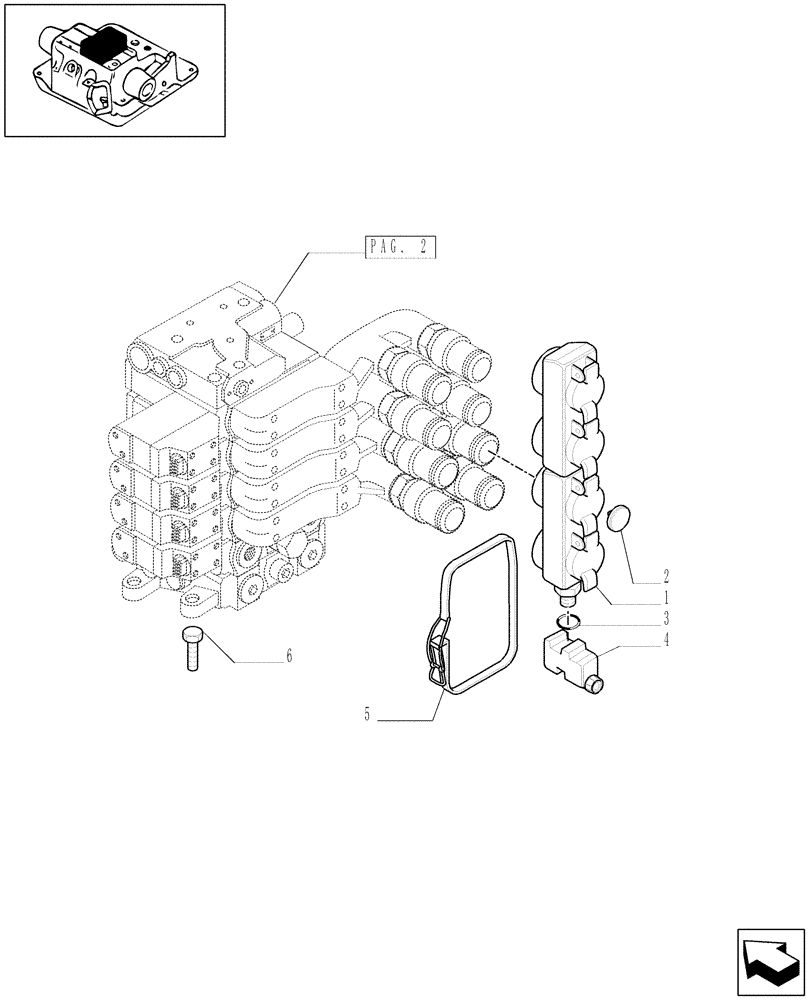

Схема запчастей Case IH MXU110 - (1.82.7/30[01]) - (VAR.378) 4 CCLS (EDC) ELECTR. CONTR. VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM
1
4
6
pag. 2
3
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82035719

DUST CAP

2шт.

2

82029895

DISC,20mm D, Black

Black

8шт.

2

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

2

82031972

RESERVOIR, HYDRAULIC

100mm wide

1шт.

2

82031973

SPRING CLIP

1шт.

3

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.
