(1.82.7/25[01]) - (VAR.361) 2 CCLS (EDC) ELECTRONIC CONTROL VALVES AND ASSOCIATED PARTS - C5504

Запчасти Case IH MXU110 (1.82.7/25[01]) - (VAR.361) 2 CCLS (EDC) ELECTRONIC CONTROL VALVES AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM

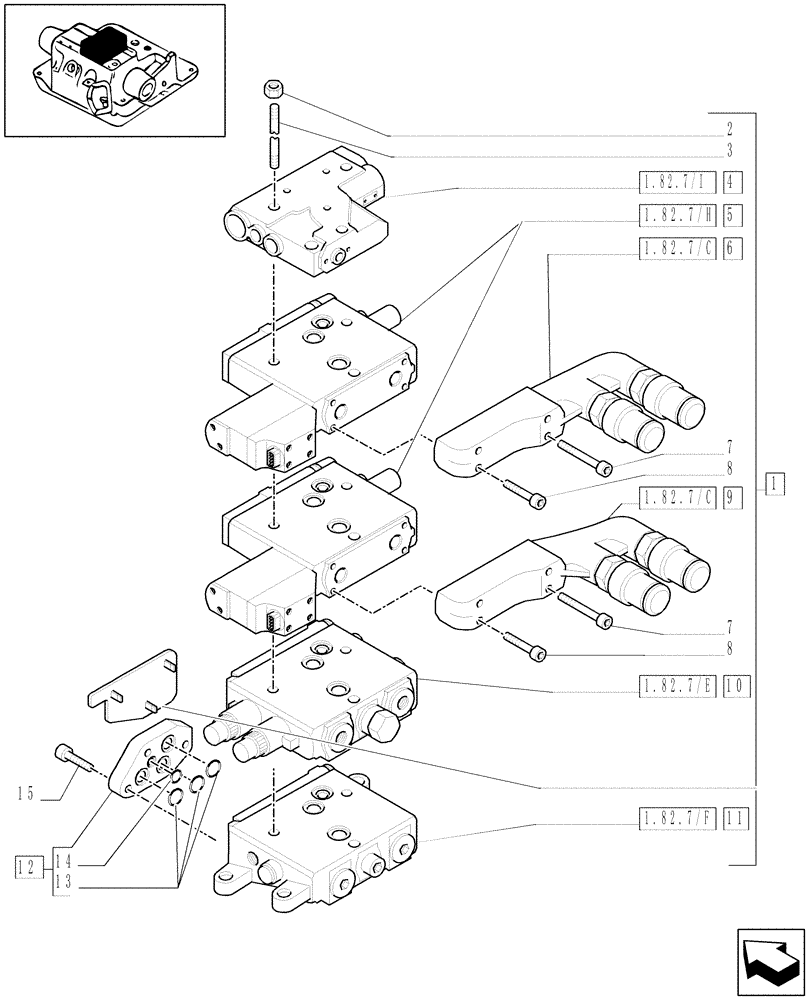

Схема запчастей Case IH MXU110 - (1.82.7/25[01]) - (VAR.361) 2 CCLS (EDC) ELECTRONIC CONTROL VALVES AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM
1.82.7/e
4
6
7
11
9
12
1.82.7/c
8
1.82.7/h
10
2
13
1
3
1.82.7/f
1.82.7/i
1.82.7/c
5
8
14
15
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47124673

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

5199619

TIE-ROD

3шт.

4

47123078

HYDRAULIC VALVE

1шт.

5

47123179

HYD VALVE SECTION

2шт.

84125295R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all (7/03-) REMAN FOR NEW P/N 47123179

2шт.

84125295C

CORE-VALVE HYD

Return Number

1шт.

6

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

6

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

5192187

CONTROL VALVE

1шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all CASE IH TRACTOR (7/03-) Reman for New P/N 5192187

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

5192184

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 ALL CASE IH TRACTOR (7/03-), REMAN FOR NEW P/N 87730706

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

5199101

COVER

1шт.

13

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

14

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

15

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.
