Запчасти Case IH MXU110 (1.82.7/10[01]) - (VAR.258/1) 2 CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM

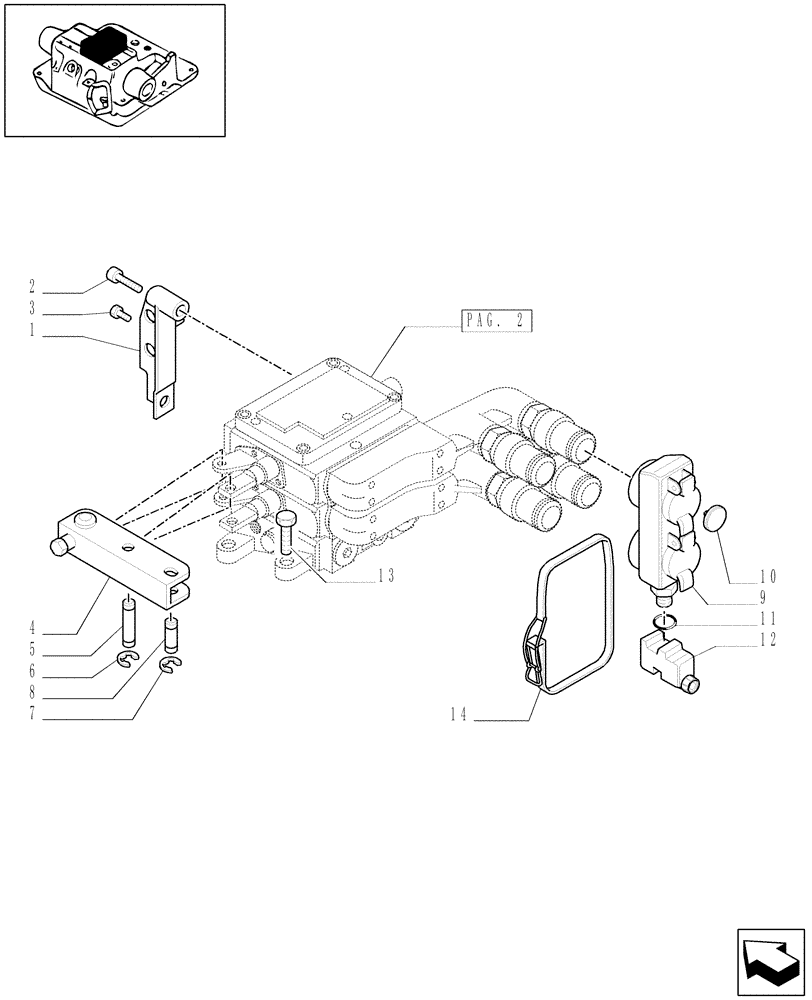

Схема запчастей Case IH MXU110 - (1.82.7/10[01]) - (VAR.258/1) 2 CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM
6
3
11
8
13
14
pag. 2
2
4
1
9
7
10
5
12

Артикул

Название

Примечание

Количество

1

5197906

BRACKET

1шт.

2

14306731

HEX SOC SCREW,M8 x 1.25 x 40mm, Cl 10.9, Full Thd

1шт.

3

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

4

47128010

LEVER

2шт.

5

5193177

PIN,6mm OD x 29.48mm L

2шт.

6

11063971

SPRING CLIP,M6

D=6

4шт.

7

11065676

SNAP RING,M8, Ext

4шт.

8

5113008

PIN,8mm OD x 26mm L

D=8

2шт.

9

82035718

DUST CAP

INCL.10

1шт.

10

82029895

DISC,20mm D, Black

Black

4шт.

11

82029356

SEAL,20.00mm OD x 3.00mm

1шт.

12

82031972

RESERVOIR, HYDRAULIC

100mm wide

1шт.

13

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

14

82031973

SPRING CLIP

1шт.

Выбрано товаров: 14
