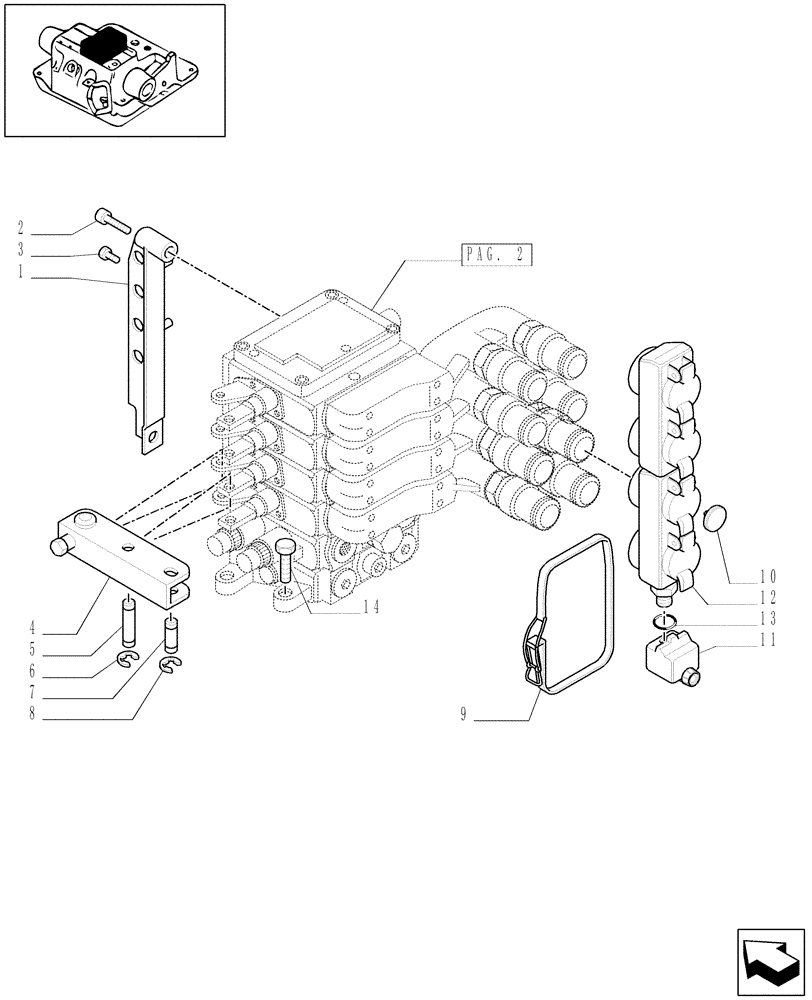

Запчасти Case IH MXU110 (1.82.7/05[01]) - (VAR.255/2) 4 CONTROL VALVES (EDC) AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

1

5197909

BRACKET

1шт.

2

14306731

HEX SOC SCREW,M8 x 1.25 x 40mm, Cl 10.9, Full Thd

1шт.

3

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

4

47128010

LEVER

4шт.

5

5193177

PIN,6mm OD x 29.48mm L

4шт.

6

11063971

SPRING CLIP,M6

D=6

8шт.

7

5113008

PIN,8mm OD x 26mm L

D=8

4шт.

8

11065676

SNAP RING,M8, Ext

8шт.

9

82031973

SPRING CLIP

1шт.

10

82029895

DISC,20mm D, Black

Black

8шт.

11

82031972

RESERVOIR, HYDRAULIC

100mm wide

1шт.

12

82035719

DUST CAP

Incl. 10, Serial Range: -C5909

2шт.

12

87733580

DUST CAP

Incl. 10, Start Serial: D5909

2шт.

13

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

14

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.
