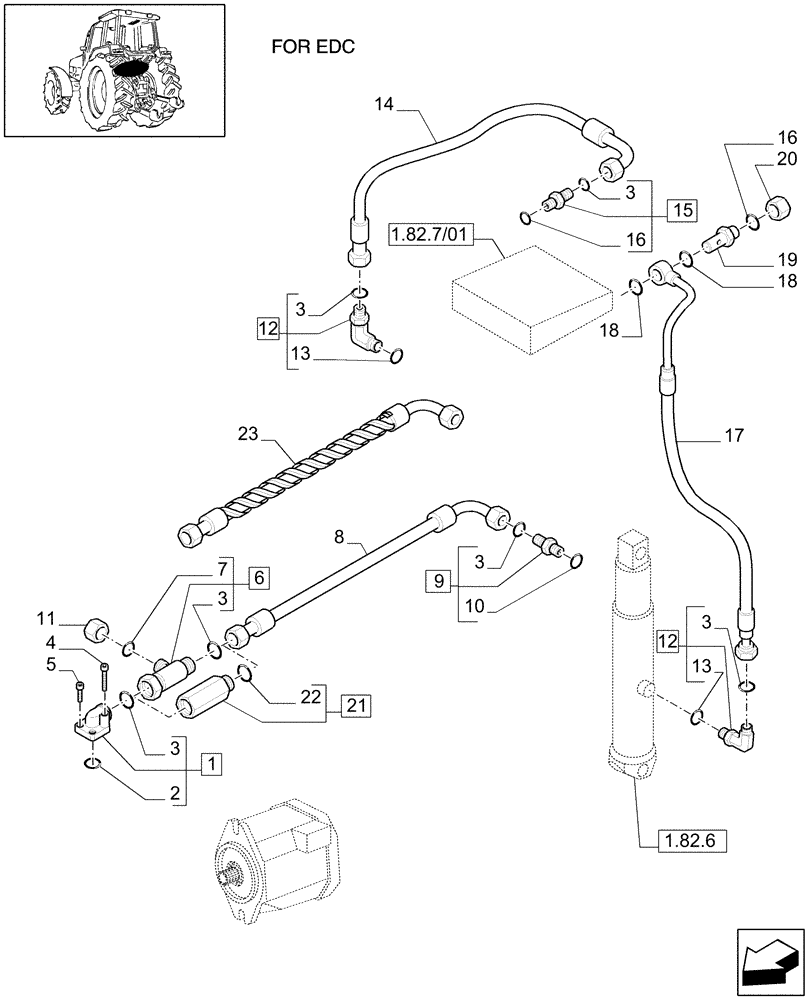

Запчасти Case IH MXU110 (1.82.1/06) - (VAR.269) FIXED DELIVERY PUMP WITH 24X24 GEARBOX - HYDRAULIC LIFT PIPES (07) - HYDRAULIC SYSTEM

1

47134223

FLANGE

1шт.

2

14458381

O-RING,32.99mm ID x 2.62" Width

1шт.

3

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

3шт.

4

14306920

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8, Full Thd

2шт.

5

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

6

5197273

HYD CONNECTOR,1' 3/16-12 x 83.6mm

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

4шт.

8

47128470

FLEXIBLE HOSE

1-13/16"-12, Serial Range: -C5151

1шт.

9

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

1-3/16"-12, M27 x 2

1шт.

10

14438185

O-RING,24mm ID x 3mm

1шт.

11

47123020

PLUG,Hex

13/16"

1шт.

12

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

13/16"-16, M18X1,5

2шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

14

47133647

HOSE,13/16"-16 ID x 600mm L

RH, 13/16"-16

1шт.

15

5196305

UNION

13/16"-16, M22X1,5

1шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

17

47133648

HOSE,10mm ID x 425mm L

LH, 13/16"-16

1шт.

18

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

2шт.

19

47133105

BANJO BOLT,M22 x 1.50 x 58mm, R50

M22X1,5

1шт.

20

47133106

PLUG,Hex, M22 x 1.5 x 13mm L

M22X1,5

1шт.

21

87303135

HYD CONNECTOR

, Serial Range: -C5151

1шт.

22

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

, Serial Range: -C5151

1шт.

23

87304916

HOSE,16mm ID x 640mm L, SAE 100R16

1-3/16"-12, 640MM, Start Serial: D5151

1шт.
