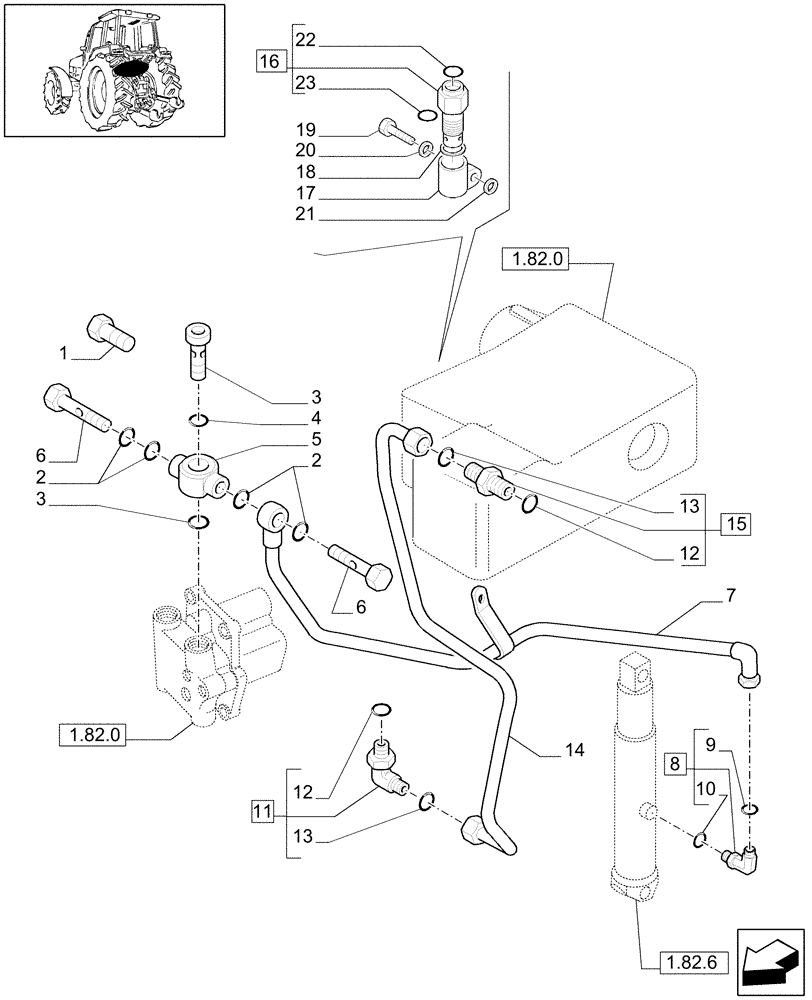

Запчасти Case IH MXU110 (1.82.1[01]) - LIFTER, LINES - C5151 (07) - HYDRAULIC SYSTEM

1

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

2

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=14

4шт.

3

47131904

BANJO BOLT

M18X1,5X39

1шт.

4

80221964

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

(M21.95 ID x 1.78 Thk)

2шт.

5

47131903

RING

1шт.

6

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14X1,5

2шт.

7

47133581

HYD TUBE

LH

1шт.

7

87302605

HYD TUBE

RH

1шт.

8

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

11/16", M16 x 1.5

2шт.

9

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

10

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

11

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

1"-14, M22 x 1.5

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

13

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

47134010

HYD TUBE

1"-14

1шт.

15

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

1"-14, M22X1,5

1шт.

16

47128782

VALVE PRESSURE RELIE

1шт.

17

5120449

BODY

1шт.

18

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

19

5120450

BANJO BOLT

M22X1, 5X50

1шт.

20

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

21

10264560

SEAL,24mm ID x 32mm OD x 1.5mm Thk

1шт.

22

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

23

14453981

O-RING,0.989" ID x 0.07" Width

1шт.
