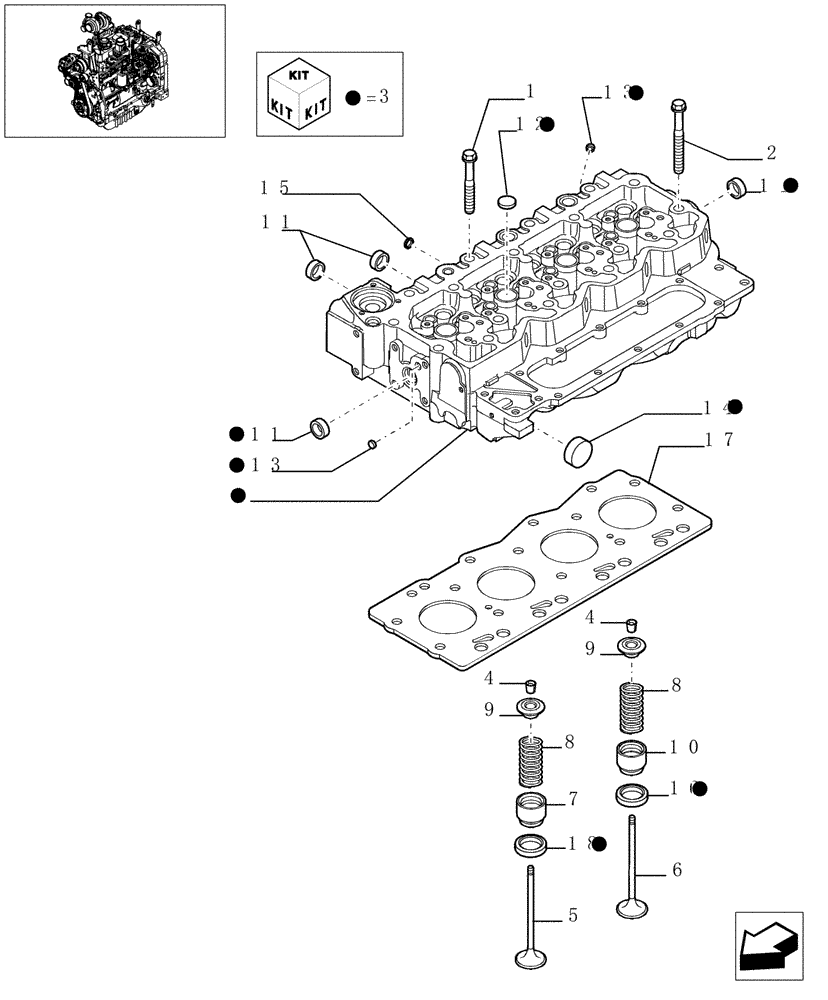

Запчасти Case IH MXU110 (0.06.0/01) - CYLINDER HEAD (01) - ENGINE

1

4891024

BOLT,Flng, M12 x 1.75 x 130mm

M12 x 130

8шт.

2

4891025

SCREW,Flng, M12 x 1.75 x 150mm

Hex Flange Hd Cap, M12 x 150

10шт.

3

4893060

CYLINDER HEAD

ASSY

1шт.

3

47507108R

REMAN-CYLINDER HEAD

MXU110 CASE IH TRACTOR, ASSY (7/03-), Reman for New PN 4893060

1шт.

3

47507108C

CORE-HYD CYLINDER

Return Number

1шт.

4

4899081

ROCKER ARM COTTER

32шт.

5

4895051

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

8шт.

6

4895052

STD INLET VALVE

STD ENGINE INLET VALVE

8шт.

7

4895072

SEAL

8шт.

8

4895073

VALVE SPRING

16шт.

9

4895074

CUP,18mm ID

16шт.

10

4895411

CUP

8шт.

11

4895085

EXPANSION PLUG,25.74mm

9шт.

12

4895089

PLUG,0.886" L

.886" OD

7шт.

13

4895406

EXPANSION PLUG,9.8mm OD

5шт.

14

4895407

EXPANSION PLUG,38.28mm OD

38.28mm OD

1шт.

15

4895408

PLUG,0.511" L

.511" OD

2шт.

16

4897578

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

8шт.

17

2830706

CYLINDER HEAD GASKET,1.25mm Thk

1,25 Thk

1шт.

17

2830707

CYLINDER HEAD GASKET,1.15mm Thk

1,15 Thk

1шт.

18

4897106

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

8шт.
