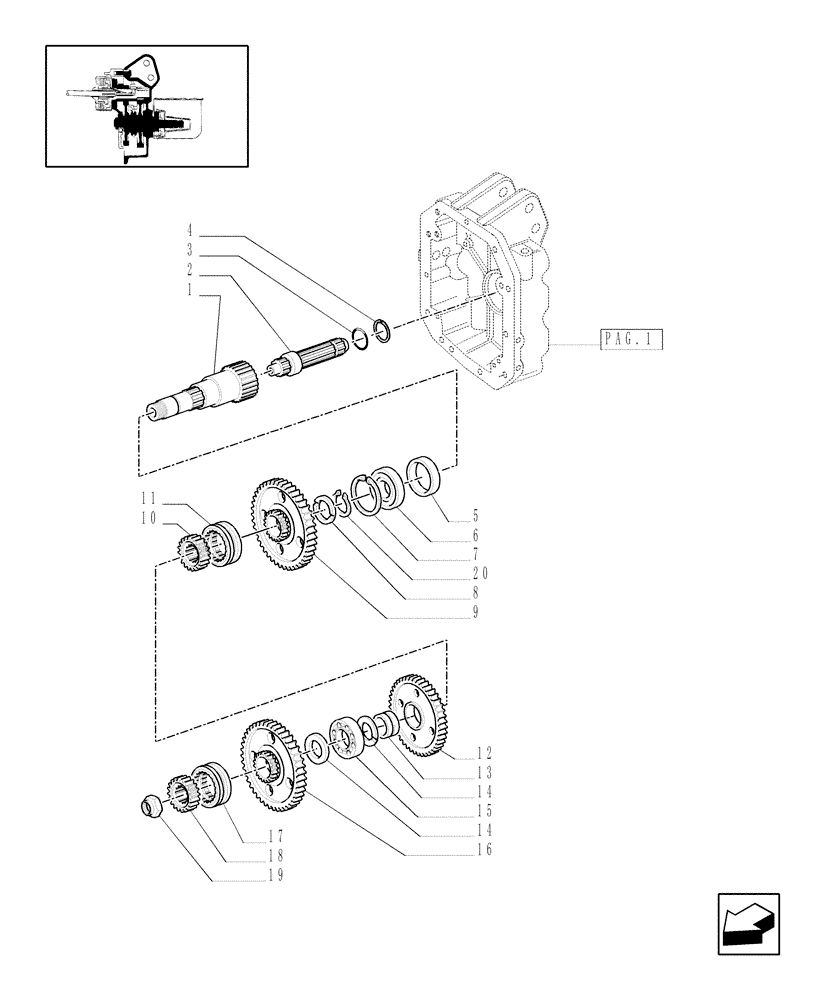

Запчасти Case IH MXU110 (1.80.1/02[02]) - (VAR.817) POWER TAKE-OFF 540/750/1000 RPM - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM

1

5192230

DRIVE SHAFT

, Serial Range: -C4831

1шт.

1

47131255

DRIVE SHAFT,21T, 12T, 20T, 12T

540/750/1000 RPM, Start Serial: D4831

1шт.

2

47130743

PTO SHAFT,6T Splines, 182mm L

540 RPM

1шт.

3

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

2,62X56,82

1шт.

4

47131547

CIRCLIP

1шт.

5

5119566

SEAL,75mm ID x 100mm OD x 10mm Thk

, Serial Range: -C4831

1шт.

6

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

65X120X23

1шт.

7

11075976

SNAP RING,M120, Int

1шт.

8

47131733

RING,65mm ID x 88mm OD x 6.7mm Thk

1шт.

9

5192158

GEAR

1шт.

10

5151488

DRIVE BUSHING

1шт.

11

5129513

SYNCHRONIZER,24T

1шт.

12

5192227

GEAR

1шт.

13

5192401

BUSHING,40mm ID x 48mm OD x 32mm L

1шт.

14

5192170

ANTI-WRAP PLATE

2шт.

15

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

1шт.

16

5197558

GEAR

1шт.

17

5130551

SLEEVE,70mm ID x 100mm OD x 20mm L

1шт.

18

5130550

PINION,28T / 12T

1шт.

19

5122985

NUT,Ring, M32, 1.5 Pitch

M32X1,5

1шт.

20

11070076

SNAP RING,M65, Ext

, Serial Range: -C4831

1шт.

20

5143130

SNAP RING,M60, Ext x 4mm

, Start Serial: D4831

1шт.
