(1.75.4[09]) - BRACKET ELECTRONIC CONTROL UNIT & RELATED PARTS - L/CAB

Запчасти Case IH MXU110 (1.75.4[09]) - BRACKET ELECTRONIC CONTROL UNIT & RELATED PARTS - L/CAB (06) - ELECTRICAL SYSTEMS

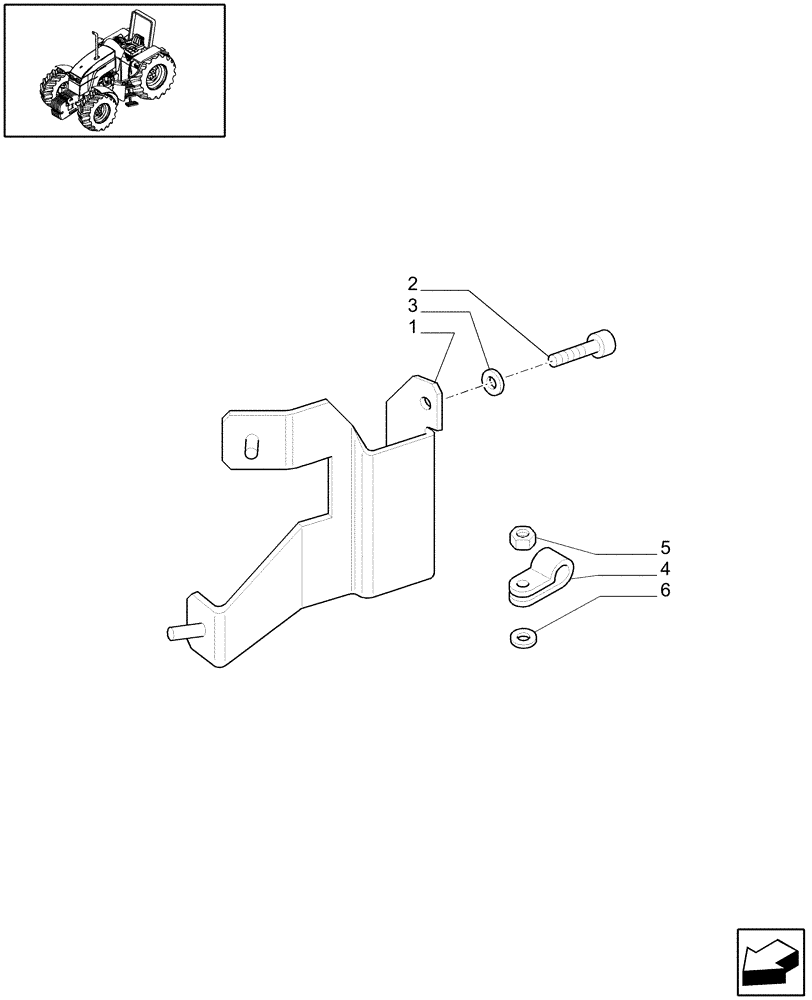

Схема запчастей Case IH MXU110 - (1.75.4[09]) - BRACKET ELECTRONIC CONTROL UNIT & RELATED PARTS - L/CAB (06) - ELECTRICAL SYSTEMS
1
6
3
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82032316

BRACKET

1шт.

2

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

3

81866577

LOCK WASHER,10.2mm ID x 17.2mm OD x 2.85mm Thk

D=6

2шт.

4

10441990

CLAMP,24mm, Coat, 7mm Bolt Hole, P Type

A=24

1шт.

4

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

M22

1шт.

5

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

6

81866577

LOCK WASHER,10.2mm ID x 17.2mm OD x 2.85mm Thk

3шт.
