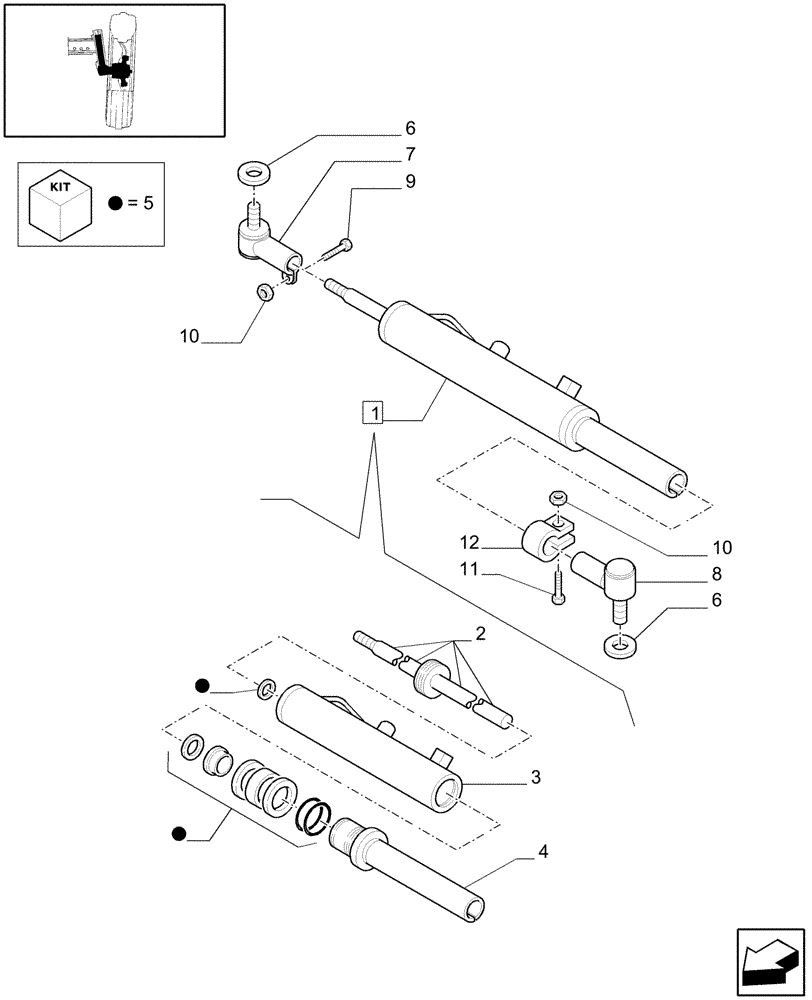

Запчасти Case IH MXU110 (1.41.0/03[03]) - (VAR.417) 2WD HEAVY DUTY FRONT AXLE - HYDRAULIC STEERING CYLINDER - BSN 216506 (04) - FRONT AXLE & STEERING

1

82004926

STEERING CYLINDER

1шт.

1

82037187R

REMAN-HYD CYLINDER

MXU100, MXU110, MXU115, All BSN 216506, CASE IH TRACTOR (7/03-), Reman for New PN 82004926

1шт.

1

82037187C

CORE-HYD CYLINDER

Return Number

1шт.

2

81863812

ROD

1шт.

3

81865704

BODY

1шт.

4

81863809

TUBE

1шт.

4

82037187R

REMAN-HYD CYLINDER

MXU100, MXU110, MXU115, All BSN 216506, CASE IH TRACTOR (7/03-), Reman for New PN 81863809

1шт.

4

82037187C

CORE-HYD CYLINDER

Return Number

1шт.

5

83959504

KIT

1шт.

6

81864101

PROTECTION CAP

2шт.

7

81863813

TRACK ROD END ASSY

1шт.

8

81863815

BALL JOINT,1 1/4" - 12 x 3" L

1шт.

9

80280524

SCREW

Cap, HH, G5, 1/2"-13 x 1-5/8"

1шт.

10

80280431

NUT

G5, 1/2"-13

2шт.

11

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

Cap, HH, G5, 1/2"-13 x 2-1/2"

1шт.

12

83948966

CLAMP

1шт.
