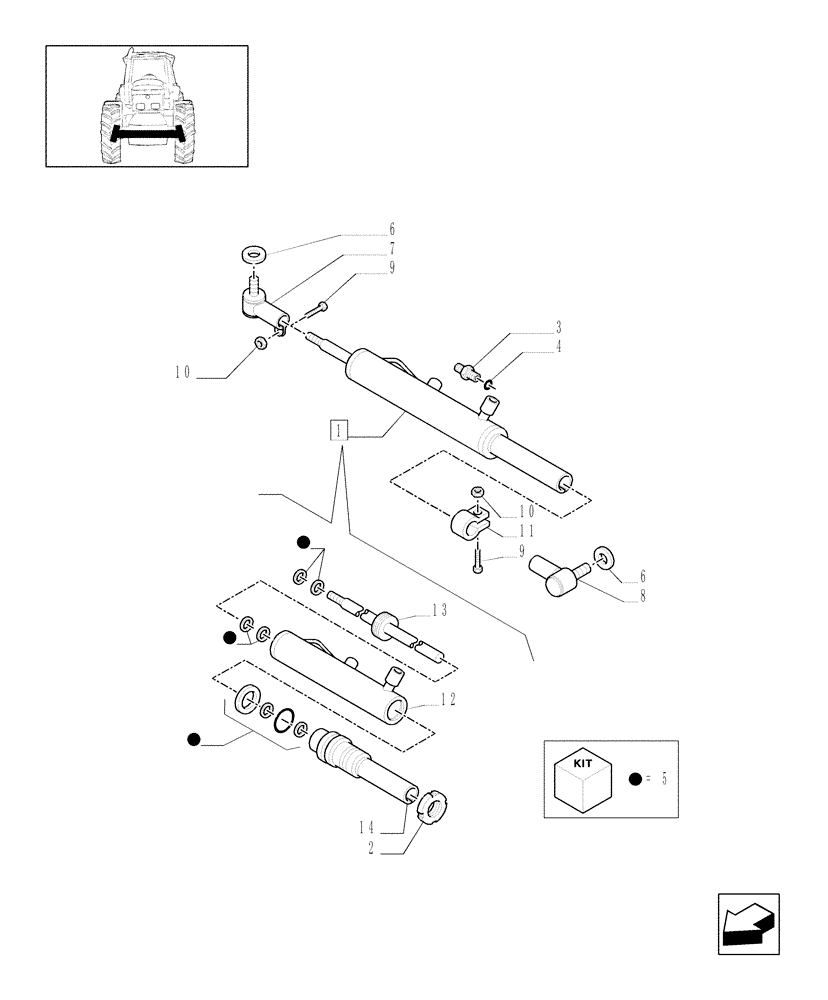

Запчасти Case IH MXU110 (1.41.0[03A]) - 2WD FRONT AXLE - HYDRAULIC STEERING CYLINDER - ASN 216505 (04) - FRONT AXLE & STEERING

1

82037177

STEERING CYLINDER,Double Acting, 28mm Rod, 236.5mm Stroke

ASSY

1шт.

82037177R

REMAN-HYD CYLINDER

MXU100, MXU110, MXU115, ALL (7/03-) 2WD ASN 216505

1шт.

82037177C

CORE-HYD CYLINDER

Return Number

1шт.

2

82037195

LOCK NUT

1шт.

3

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

2шт.

4

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

2шт.

5

82037193

SEAL KIT

1шт.

6

81864101

PROTECTION CAP

2шт.

7

81864114

TRACK ROD END ASSY

INCL. 6, 9, 10

1шт.

8

81864115

TRACK ROD END ASSY

INCL. 6

1шт.

9

82851742

BOLT

1шт.

10

11702911

NUT,M12, Cl 8, ZND

1шт.

11

82037182

CLAMP

1шт.

12

82037179

BARREL

1шт.

13

82037181

PISTON ROD

1шт.

14

82037180

ROD

1шт.
