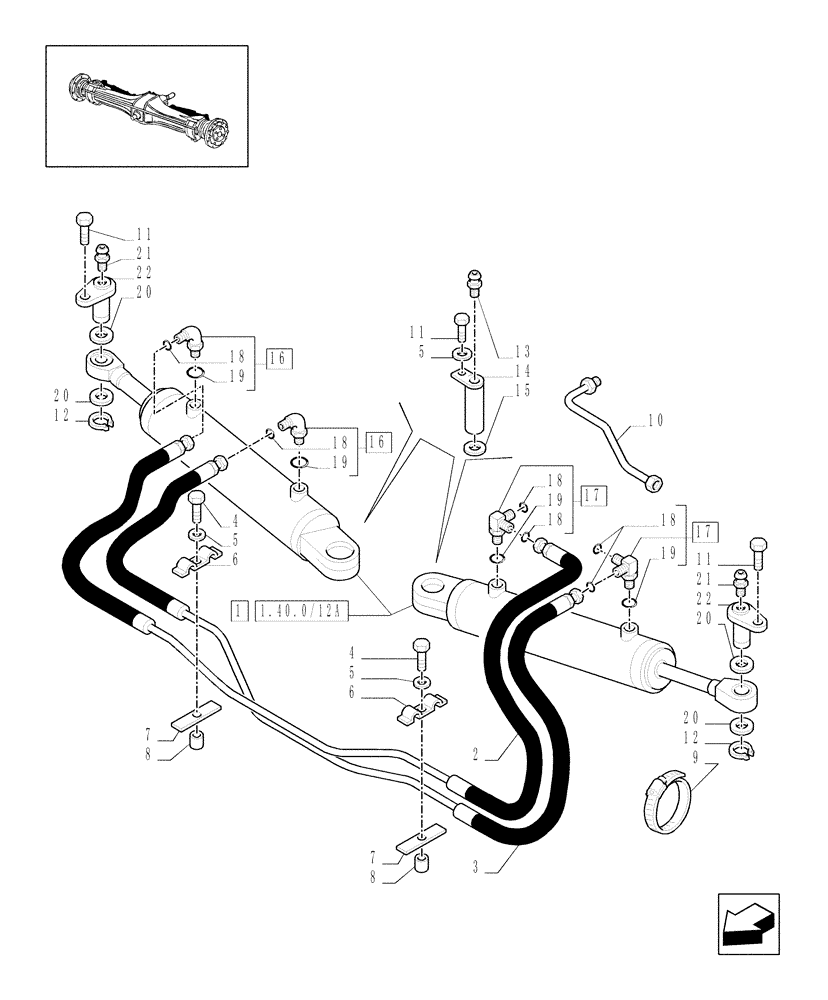

Запчасти Case IH MXU110 (1.40.4/12) - (VAR.309/1-359/1) 4WD FRONT AXLE WITH SUSP. AND TERRALOCK, BRAKES - HYDRAULIC STEERING CYLINDER (04) - FRONT AXLE & STEERING

1

5189887

STEERING CYLINDER,Double Acting, 22mm Rod, 128mm Stroke

1шт.

5189887R

REMAN-HYD CYLINDER

MXU100, MXU110, MXU115, MXU125, MXU135,

1шт.

5189887C

CORE-HYD CYLINDER

Return Number

1шт.

2

5197916

HYDRAULIC HOSE

RH, MXU100, MXU110, MXU115 (VAR. 309/1)

1шт.

2

5188440

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

RH, (VAR. 359/1)

1шт.

3

5198191

HYDRAULIC HOSE

LH, MXU100, MXU110, MXU115 (VAR. 309/1)

1шт.

3

5188439

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

LH, (VAR. 359/1)

1шт.

4

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

6

5188504

BRACKET

2шт.

7

5188503

BRACKET

2шт.

8

13605811

SPACER,8.50mm ID x 18.00mm OD x 10.00mm, STL, ZND

2шт.

9

13000990

COLLAR,60mm - 80mm, Worm Gear

1шт.

10

47126946

HYD TUBE

11/16"-16

1шт.

11

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

12

11066876

SNAP RING,M20, Ext

2шт.

13

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

14

5142048

PIN,19.98mm x 107.00mm

2шт.

15

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

2шт.

16

47127165

90 ELBOW

2шт.

17

5188443

90 ELBOW

2шт.

18

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

6шт.

19

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

20

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

25,5X34

4шт.

21

87414

LUBE NIPPLE,1/4" - 28

2шт.

22

5173252

PIN,19.98mm OD x 79.5mm L

2шт.
