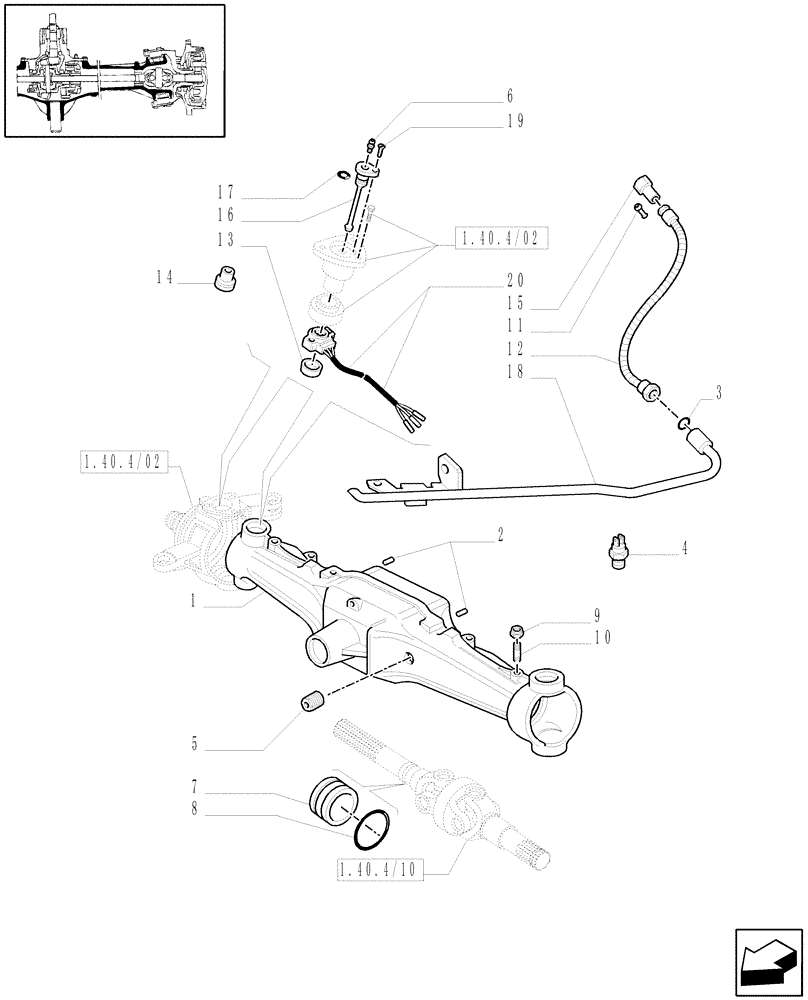

Запчасти Case IH MXU110 (1.40.4/01[01]) - (VAR.309/1) 4WD FRONT AXLE WITH SUSPENSIONS AND TERRALOCK , BRAKES - BOX (04) - FRONT AXLE & STEERING

1

47126900

AXLE HOUSING

, Serial Range: -C5196

1шт.

1

87309181

AXLE HOUSING

Incl.2, Start Serial: D5196

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

14452781

O-RING,6.07mm ID x 1.78" Width

1шт.

4

5115055

SWITCH ASSY

Trans. Oil

1шт.

5

14326211

PLUG,M22 x 1.50, R50, ZND

Magnetic

2шт.

6

13406811

LUBE NIPPLE,45 Degree, 1/4" NPT x .81" lg

, Serial Range: -C5196

1шт.

7

4996755

BUSHING

, Serial Range: -C5243

2шт.

7

87371268

BUSHING,62mm ID x 85mm OD x 43mm L

, Start Serial: D5243

2шт.

8

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

80 x 2.62, Serial Range: -C5243

2шт.

8

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

, Start Serial: D5243

2шт.

9

16101524

NUT,M12 x 1.25, Cl 10

2шт.

10

87309002

SET SCREW

M12X1,25X67

2шт.

11

82918419

PLUG

1шт.

12

82016109

FLEXIBLE SHEATH

1шт.

13

5168958

SUPPORT

, Serial Range: -C5196

1шт.

14

5175211

BUSHING,10mm ID x 23mm OD x 17mm L

, Serial Range: -C5196

1шт.

15

82918426

ELEC CONNECTOR,Female

1шт.

16

5191230

PIN

, Serial Range: -C5196

1шт.

17

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

, Serial Range: -C5196

1шт.

18

5198053

SHIELD

1шт.

19

10384911

SCREW,Slotted Countersunk, M5 x 12mm

, Serial Range: -C5196

1шт.

20

82019691

SENSOR

Steering Angle, Serial Range: -C5196

1шт.
