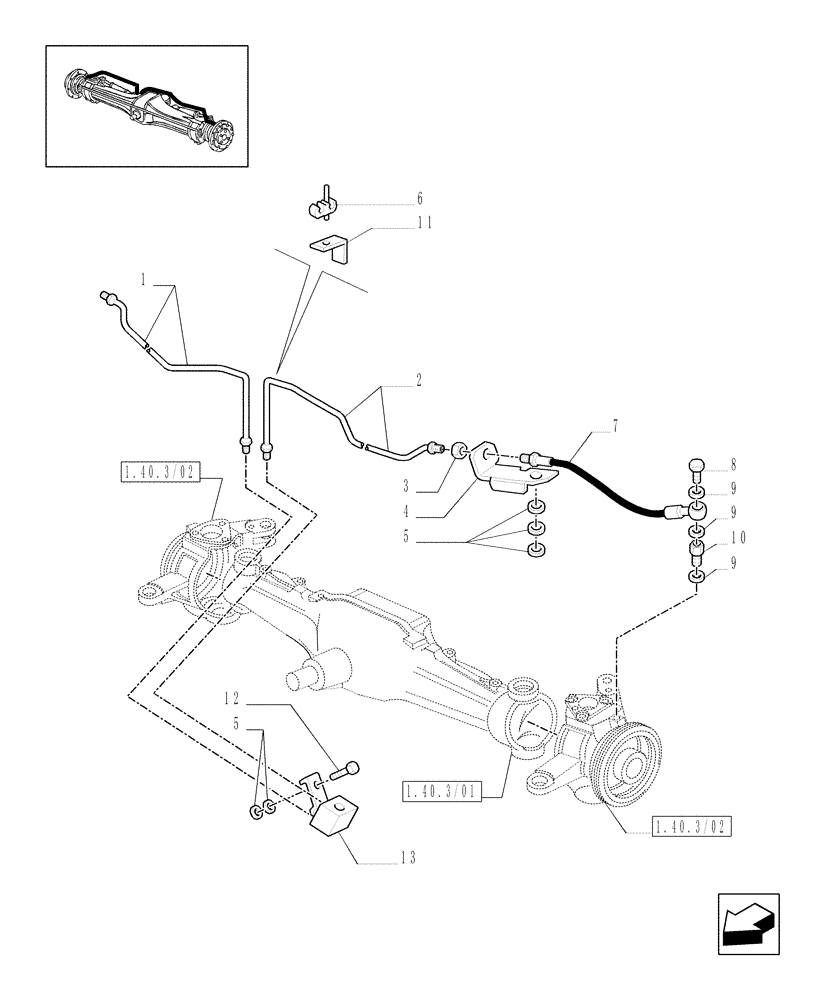

Запчасти Case IH MXU110 (1.40.3/14[02]) - (VAR.309) 4WD FRONT AXLE WITH BRAKES WITH TERRALOCK - BRAKES (04) - FRONT AXLE & STEERING

1

5199605

TUBE

RH

1шт.

2

5199600

TUBE

LH

1шт.

3

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

4

47123154

BRACKET

LH

1шт.

4

47123155

BRACKET

RH

1шт.

5

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

6шт.

6

14575280

SPRING CLIP

1шт.

7

5155700

HOSE,4.75mm ID x 315.00mm

2шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

9

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

6шт.

10

5182367

HYD CONNECTOR

, Serial Range: -C5112

2шт.

10

87325259

HYD CONNECTOR

, Start Serial: D5112

2шт.

11

5182331

BRACKET

1шт.

12

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

1шт.

13

5183738

BRACKET

1шт.
