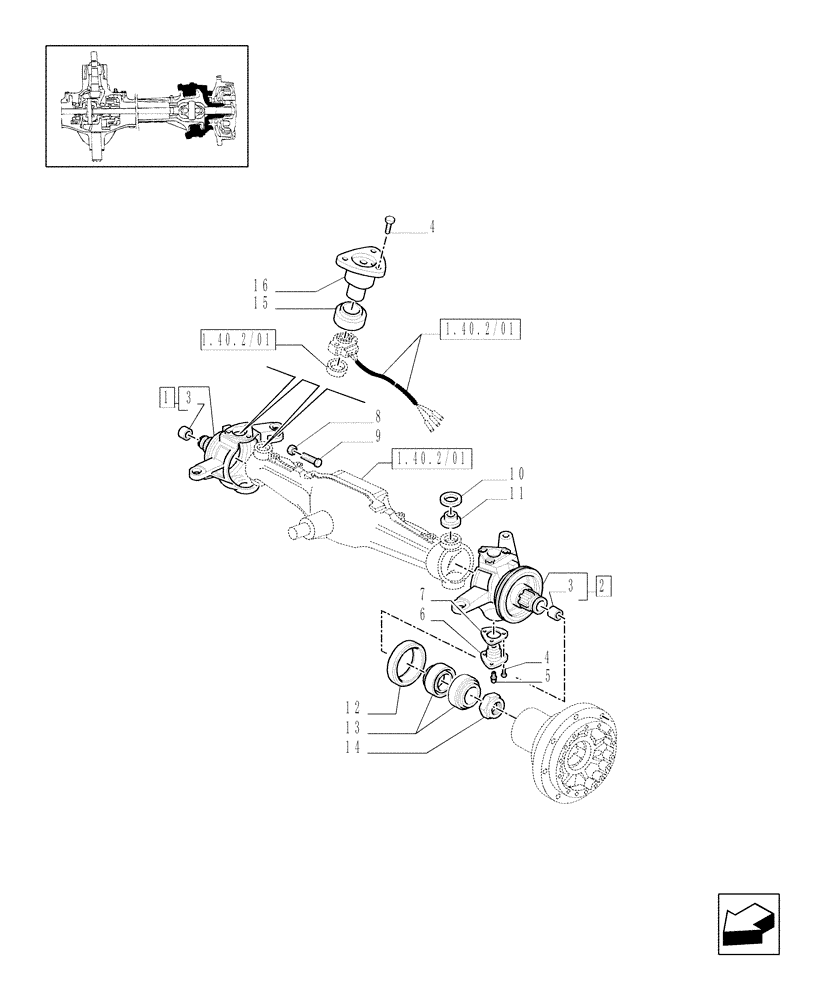

Запчасти Case IH MXU110 (1.40.2/02[01]) - (VAR.301/1-358/1) 4WD FRONT AXLE W/SUSPENSIONS AND TERRALOCK - STEERING AXLES - HUBS - C5196 (04) - FRONT AXLE & STEERING

1

5171556

STEERING KNUCKLE,RH

RH

1шт.

1

5171556R

REMAN-AXLE

MXU100, MXU110, MXU115, MXU125, MXU135, All CASE IH TRACTOR, RH (7/03-)

1шт.

1

5171556C

CORE-AXLE

Return Number

1шт.

2

5171554

STEERING KNUCKLE,LH

LH

1шт.

2

5171554R

REMAN-AXLE

MXU100, MXU110, MXU115, MXU125, MXU135, All CASE IH TRACTOR, LH (7/03-)

1шт.

2

5171554C

CORE-AXLE

Return Number

1шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

42 x 46 x 28

2шт.

4

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

5

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

3шт.

6

5137239

BALL STUD

BALL PIN

3шт.

7

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

7

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

7

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

MM.0,20

1шт.

7

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

MM.0,30

1шт.

8

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

9

5167638

SCREW

2шт.

10

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

4шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

12

5184116

SEAL

165 x 190 x 15.5-17

2шт.

13

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

4шт.

14

5142020

NUT,Hex, M75 x 2

2шт.

15

5169910

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

64.292 mm ID

1шт.

16

47133050

PIN

1шт.
