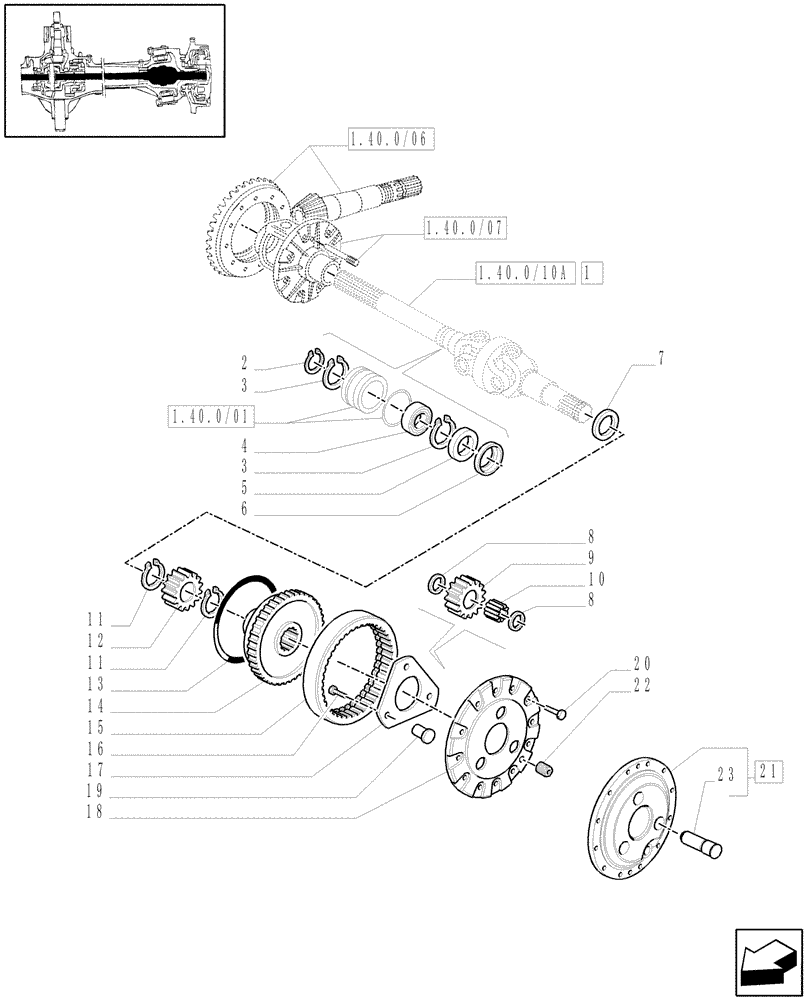

Запчасти Case IH MXU110 (1.40.0/10[01]) - 4WD FRONT AXLE - DIFFERENTIAL GEARS AND DIFFERENTIAL SHAFT (04) - FRONT AXLE & STEERING

1

5166562

ARTICULATED SHAFT

LH

1шт.

1

5166550

ARTICULATED SHAFT

RH

1шт.

2

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

3

80370012

SNAP RING

4шт.

4

28042470

BALL BEARING,35mm ID x 62mm OD x 14mm W

2шт.

5

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

40X62X10-12

2шт.

6

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

2шт.

7

5184118

SEAL,42mm ID x 62mm OD x 21.5mm Thk

62 x 42 x 21.5

2шт.

8

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

9

5145497

PLANETARY GEAR,25T

6шт.

10

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

6шт.

11

5140018

SNAP RING,M30, Ext

4шт.

12

5145501

SUN GEAR,16T

2шт.

13

5151438

LOCKING RING,222mm ID, Int

2шт.

14

5151440

GEAR

2шт.

15

5191770

RING GEAR

2шт.

16

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

17

5152324

LOCKING RING,4mm Thk

2шт.

18

5191766

CARRIER

, Serial Range: -C5025

2шт.

19

5165455

PIN,30.3mm OD x 63mm L

63mm l., Serial Range: -C5025

6шт.

20

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

21

87310820

CARRIER,Planetary

, Start Serial: D5025

2шт.

22

14326211

PLUG,M22 x 1.50, R50, ZND

Magnetic

2шт.

23

87304540

PIN,30.3mm OD x 68mm L

68mm l., Start Serial: D5025

6шт.
