(1.32.6/02) - (VAR.163) DIFFERENTIAL LOCK FOR NON-STRENGTHENED WHEEL AXLE - DIFFERENTIAL LOCKS

Запчасти Case IH MXU110 (1.32.6/02) - (VAR.163) DIFFERENTIAL LOCK FOR NON-STRENGTHENED WHEEL AXLE - DIFFERENTIAL LOCKS (03) - TRANSMISSION

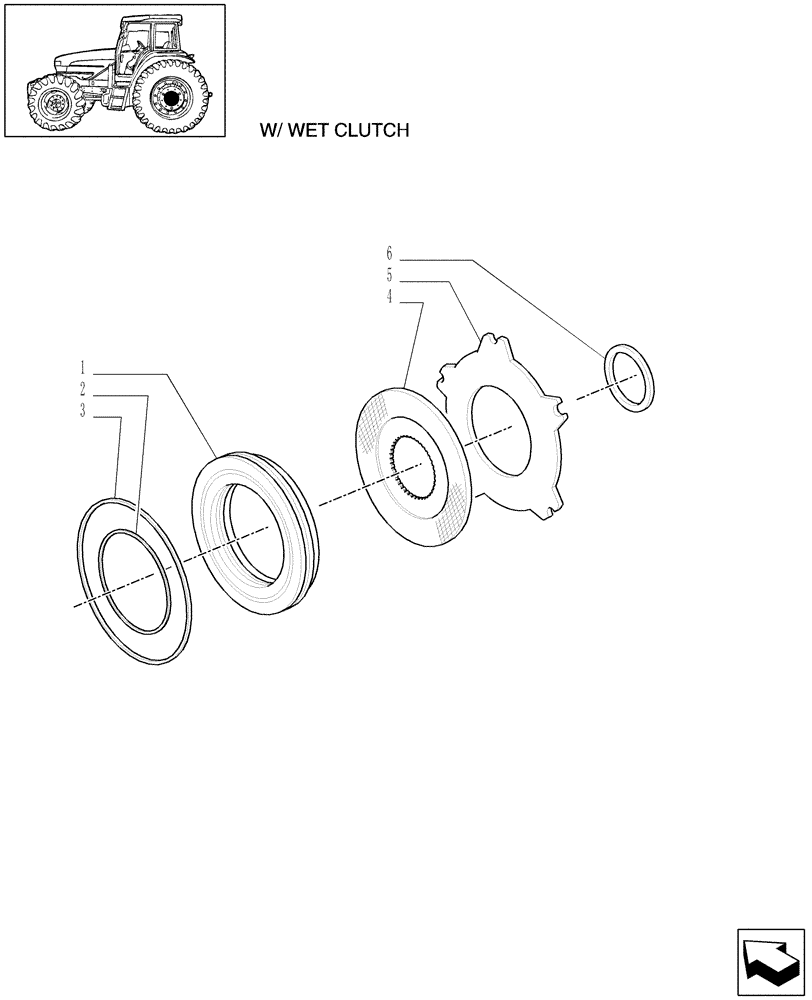

Схема запчастей Case IH MXU110 - (1.32.6/02) - (VAR.163) DIFFERENTIAL LOCK FOR NON-STRENGTHENED WHEEL AXLE - DIFFERENTIAL LOCKS (03) - TRANSMISSION
4
2
3
6
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5191926

PISTON

1шт.

2

14461981

O-RING,5.487" ID x 0.103" Width

2,62X139,4

1шт.

3

14462681

O-RING,7.237" ID x 0.103" Width

1шт.

4

5191924

CLUTCH PLATE

6шт.

5

5191925

CLUTCH DRIVING PLATE

6шт.

6

5191927

SEALING RING,67mm ID x 75mm OD x 2.60mm

2шт.
