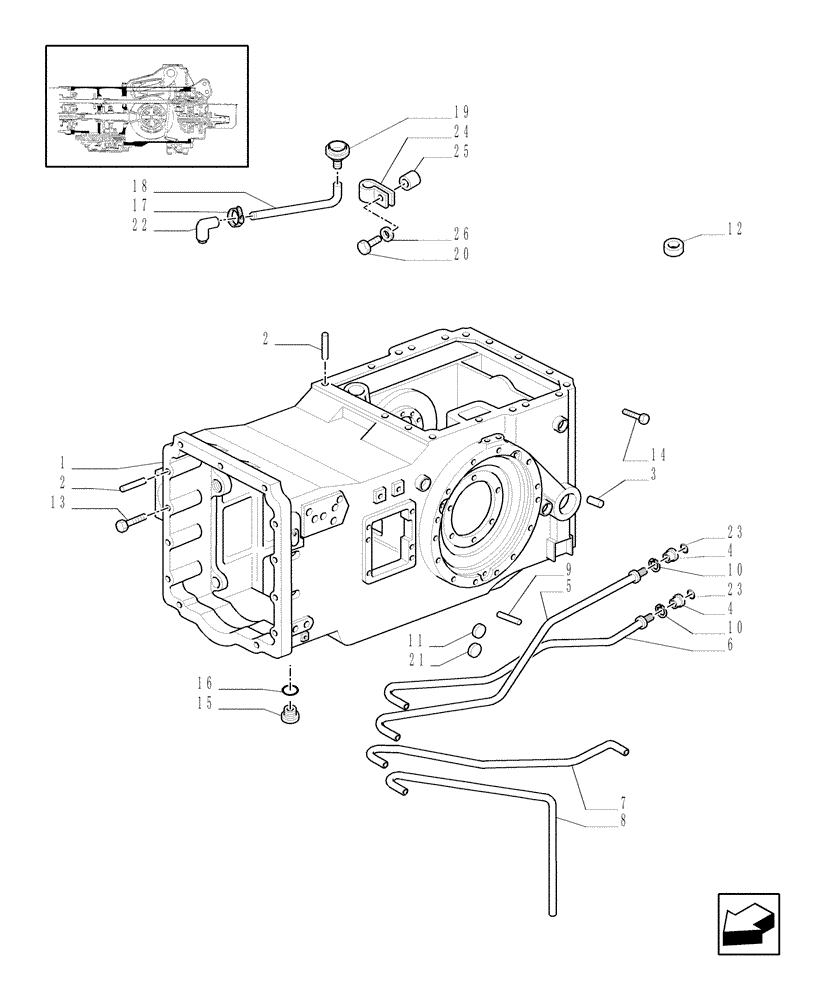

Запчасти Case IH MXU110 (1.21.0[02]) - TRANSMISSION BOX AND RELATED PIPES (03) - TRANSMISSION

1

47125367

TRANSMISSION HOUSING

1шт.

2

4985062

DOWEL,15mm OD x 25mm L

M15 x 25

6шт.

3

5110200

DOWEL,12mm OD x 25mm L

M12 x 25

10шт.

4

5186628

BUSHING,16mm ID x 22mm OD x 14mm L

2шт.

5

5193856

TUBE

Supply P.T.O. Clutch

1шт.

6

5196279

TUBE

Brake P.T.O.

1шт.

7

5197048

TUBE

Diff. Lock

1шт.

8

5198214

HYD TUBE

4WD, Hydr. Clutch

1шт.

9

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

10

300625

SNAP RING,M16, Ext

2шт.

11

14328201

PLUG,M10, Tapered

1шт.

12

14328701

PLUG,M20, Tapered

1шт.

13

11394331

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

8шт.

14

11422030

BOLT,Hex, M14 x 1.5 x 55, 10.9

5шт.

15

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

16

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

17

82000599

CLAMP,22mm - 26mm

1шт.

18

82012599

FUEL HOSE,15.9mm ID x 800mm L

1шт.

19

89636958

BREATHER

1шт.

20

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

21

82037171

PLASTIC PLUG,22.00mm, 32.00mm OD

8шт.

22

5139656

FITTING

, Serial Range: -C4857

2шт.

22

47134073

PIPE

, Start Serial: D4857

2шт.

23

14453181

O-RING,0.489" ID x 0.07" Width

2шт.

24

87302117

CLAMP,18.5mm ID, 9mm Bolt Hole, P Type

1шт.

25

5120607

SPACER,10.5mm ID x 20mm OD x 12mm L

M10 x 20 x 12

1шт.

26

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

1шт.
