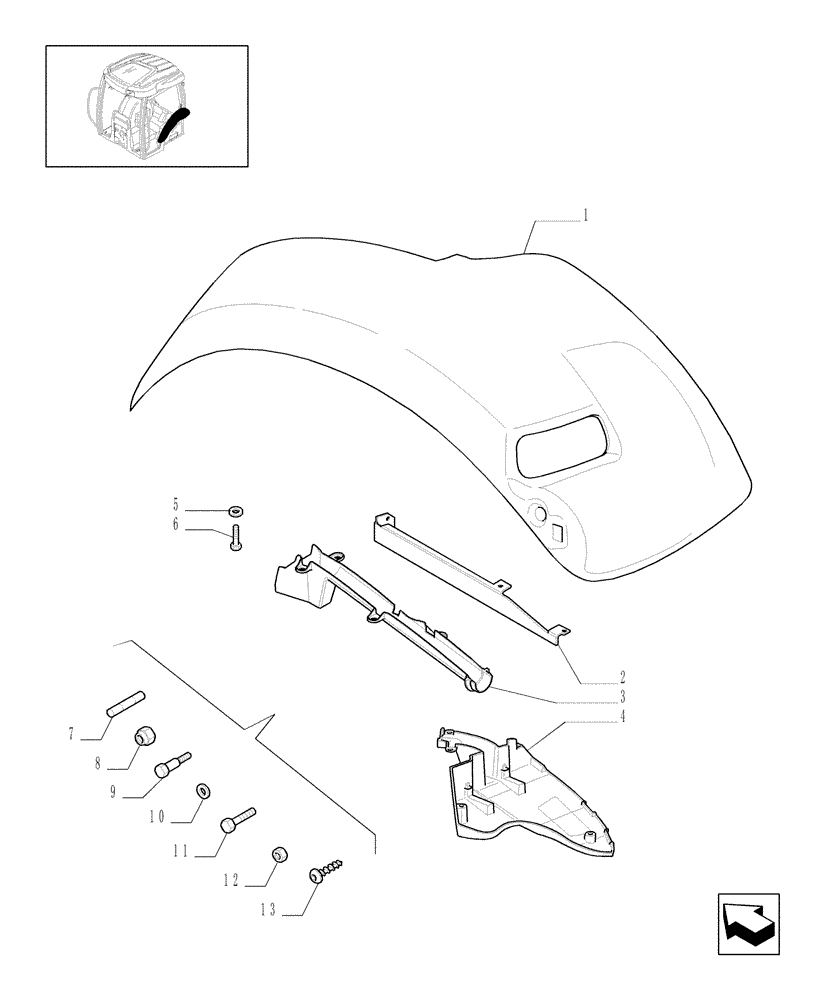

Запчасти Case IH MXU100 (1.92.5/02[01]) - (VAR.239-240-512-513) REAR FENDERS - FENDERS AND SUPPORTS (10) - OPERATORS PLATFORM/CAB

1

87339931

REAR FENDER

LH, Serial Range: -C5194

1шт.

1

87339932

REAR FENDER

RH, Serial Range: -C5194

1шт.

1

87382601

REAR FENDER

LH, Serial Range: D5194-C5195

1шт.

1

87382602

REAR FENDER

RH, Serial Range: D5194-C5195

1шт.

1

87399043

REAR FENDER

LH, Serial Range: D5195-C5429

1шт.

1

87399044

REAR FENDER

RH, Serial Range: D5195-C5429

1шт.

1

87544622

REAR FENDER

LH, Serial Range: D5429-C5562

1шт.

1

87544623

REAR FENDER

RH, Serial Range: D5429-C5562

1шт.

1

87606889

REAR FENDER

LH, Start Serial: D5562

1шт.

1

87606890

REAR FENDER

RH, Start Serial: D5562

1шт.

2

87389465

BRACKET

LH

1шт.

2

87389466

BRACKET

RH

1шт.

3

87329196

COVER

LH

1шт.

3

87329197

COVER

RH

1шт.

4

87383820

COVER

LH

1шт.

4

87383821

COVER

RH

1шт.

5

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

, Serial Range: -C5562

18шт.

5

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

, Start Serial: D5562

18шт.

6

47057607

SCREW,Pan HD, M5 x 20mm

, Serial Range: -C5562

18шт.

6

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

, Start Serial: D5562

18шт.

7

13517020

STUD

4шт.

8

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

6шт.

9

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

10

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

12шт.

10

12644301

WASHER,M10 x 35 x 3

4шт.

11

83992627

CAPTIVE WASHER SCREW,Hex, M8 x 1.25 x 25mm, Pilot

2шт.

12

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

13

81870039

FASTENER,M8 x 1.5 x 22mm

4шт.
