(1.92.3/02) - (VAR.545) ROOF WITH LOW PROFILE - WINDSHIELD AND RELATED PARTS

Запчасти Case IH MXU100 (1.92.3/02) - (VAR.545) ROOF WITH LOW PROFILE - WINDSHIELD AND RELATED PARTS (10) - OPERATORS PLATFORM/CAB

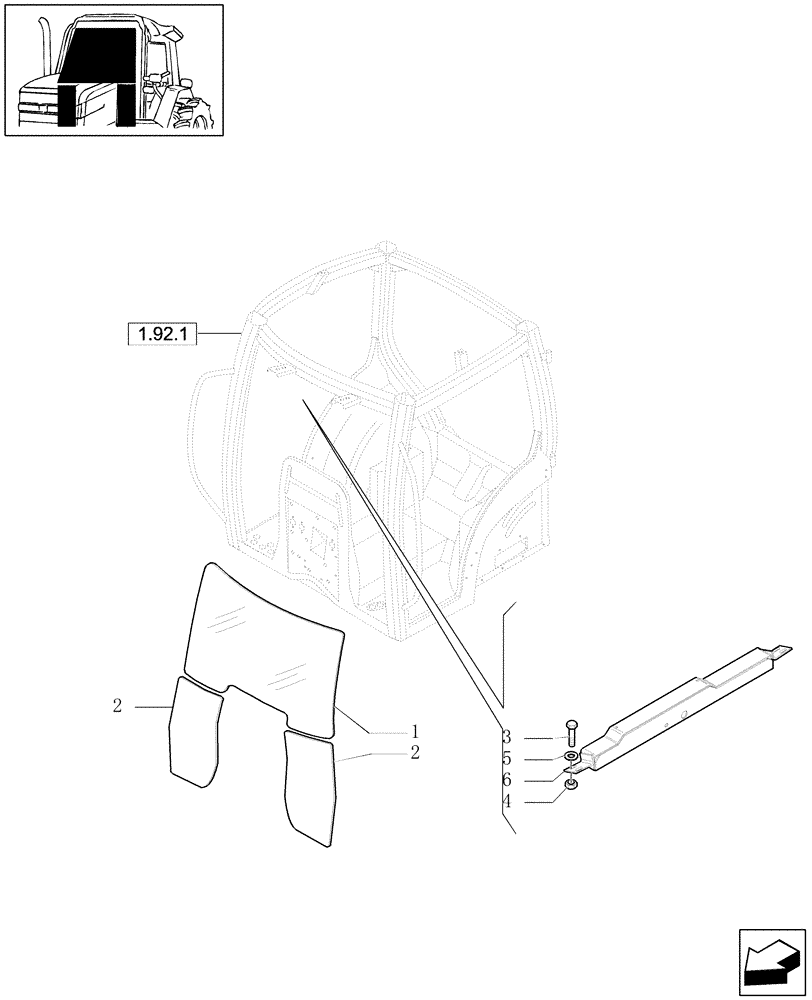

Схема запчастей Case IH MXU100 - (1.92.3/02) - (VAR.545) ROOF WITH LOW PROFILE - WINDSHIELD AND RELATED PARTS (10) - OPERATORS PLATFORM/CAB
1
3
4
2
6
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87304257

WINDSHIELD

1шт.

2

87304261

CAB GLASS ASSY

LH

1шт.

2

87304259

CAB GLASS ASSY

RH

1шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

6

87327975

SUPPORT

1шт.

Выбрано товаров: 7
