Запчасти Case IH MXU100 (1.91.4/10) - (VAR.558-559-562-563) FRONT HPL AND FRONT PTO WITH SHAFT WITH 6 SPLINES - FRONT CONDUCTOR - W/CAB (10) - OPERATORS PLATFORM/CAB

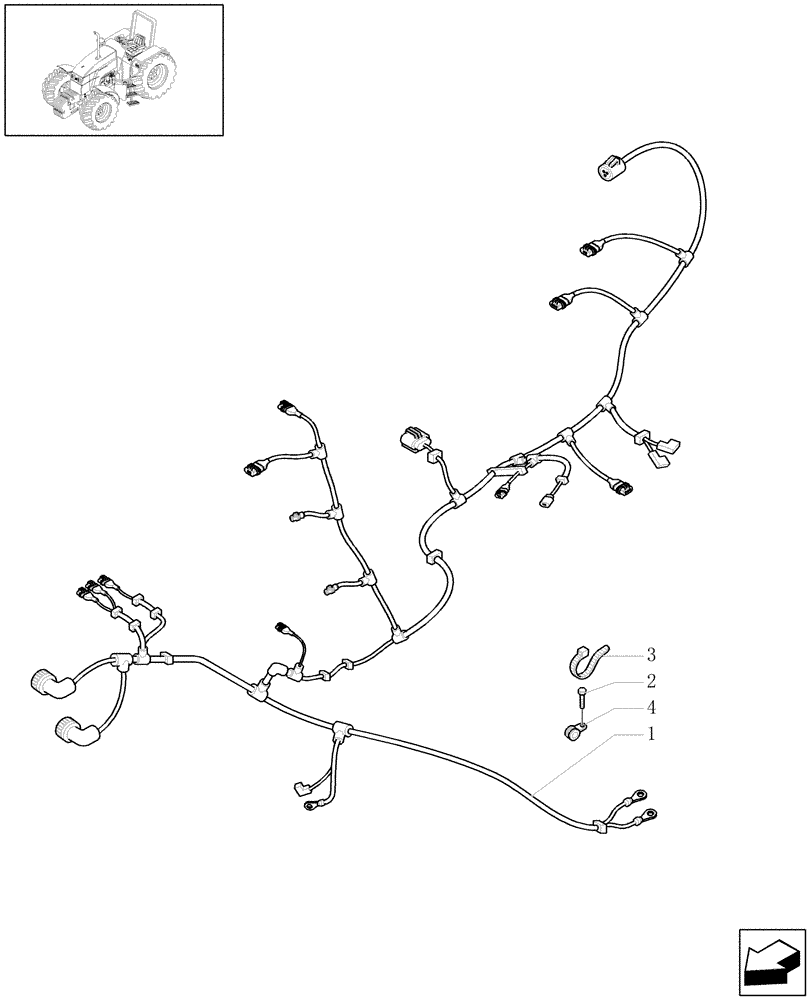

Схема запчастей Case IH MXU100 - (1.91.4/10) - (VAR.558-559-562-563) FRONT HPL AND FRONT PTO WITH SHAFT WITH 6 SPLINES - FRONT CONDUCTOR - W/CAB (10) - OPERATORS PLATFORM/CAB
1
3
4
2

Артикул

Название

Примечание

Количество

1

87305184

WIRE HARNESS

Mech. Advanced

1шт.

For (MXU115, MXU125, MXU135) W\Var. 558-562-563 only

1шт.

1

87305188

WIRE HARNESS

Elec. Advanced

1шт.

For (MXU115, MXU125, MXU135) W\Var. 558-562-563 only

1шт.

1

82039437

WIRE HARNESS

Mech. Advanced, Serial Range: -C7071

1шт.

For MXU100, MXU110 only

1шт.

1

87305182

WIRE HARNESS

Mech. Advanced, Start Serial: D7071

1шт.

For MXU100, MXU110 only

1шт.

1

82030684

RIM

Elec. Advanced, Serial Range: -C7071

1шт.

For MXU100, MXU110 only

1шт.

1

87305186

WIRE HARNESS

Elec. Advanced, Start Serial: D7071

1шт.

For MXU100, MXU110 only

1шт.

2

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

For (MXU115, MXU125, MXU135) W\Var. 558-562-563 only

1шт.

2

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

2

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

For MXU100, MXU110 only

1шт.

3

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

4

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

26 mm dia.

3шт.

4

10441990

CLAMP,24mm, Coat, 7mm Bolt Hole, P Type

D=24

2шт.

For (MXU115, MXU125, MXU135) W\Var. 558-562-563 only

1шт.

Выбрано товаров: 21
