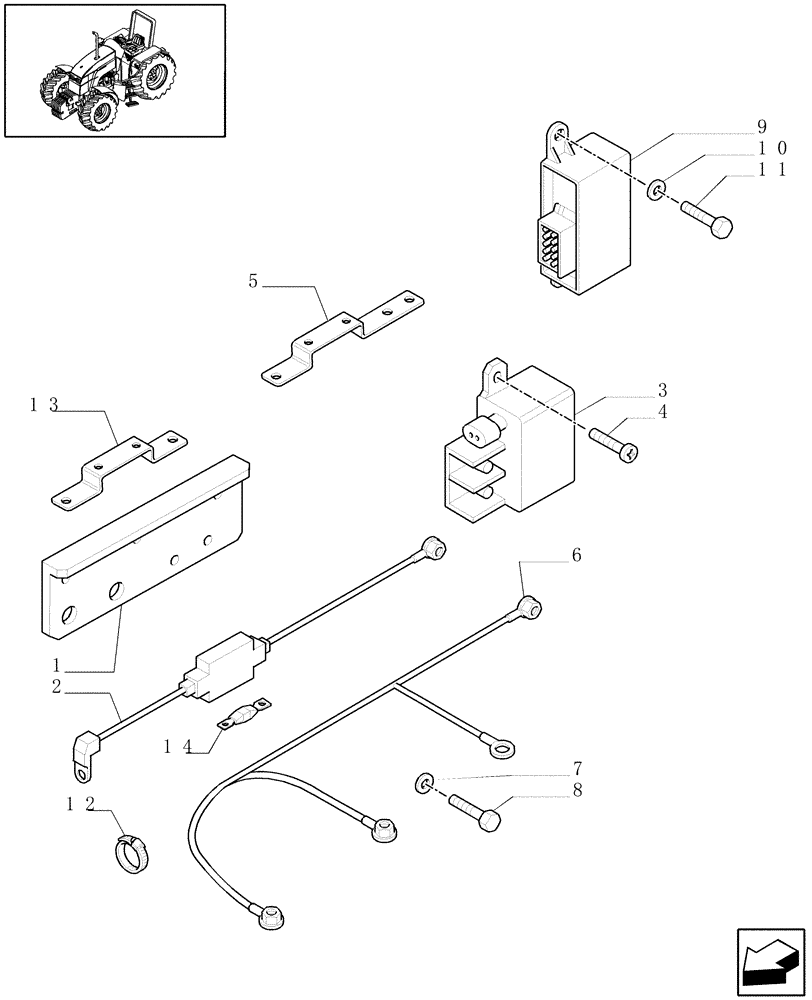

Запчасти Case IH MXU100 (1.91.4/01) - (VAR.203) AIR HEATER AND RELAY CABLES - (W/CAB) (10) - OPERATORS PLATFORM/CAB

1

82034486

BRACKET

, Serial Range: -C4862

1шт.

2

82036889

WIRE HARNESS

GRID HEATER, Incl.14

1шт.

3

82022813

RELAY,12V, High Current

1шт.

4

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

2шт.

5

87570805

BRACKET

, Start Serial: D5516

1шт.

6

82034768

WIRE HARNESS

MXU100, GRID HEATER, Serial Range: -C4862

1шт.

6

82037654

WIRE HARNESS,435mm L

MXU115, GRID HEATER, Start Serial: D4862

1шт.

6

82034767

WIRE HARNESS

MXU115, GRID HEATER, Serial Range: -C4862

1шт.

6

82037655

WIRE HARNESS,210mm L

MXU100, GRID HEATER, Start Serial: D4862

1шт.

7

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

8

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

9

47132002

HEATER

GRID HEATER

1шт.

10

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

11

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

12

82013031

CABLE TIE,193mm L

CABLE STRAP

2шт.

13

82037657

BRACKET

, Serial Range: D4862-C5516

1шт.

14

11056290

FUSE,125A, Maxi

1шт.
