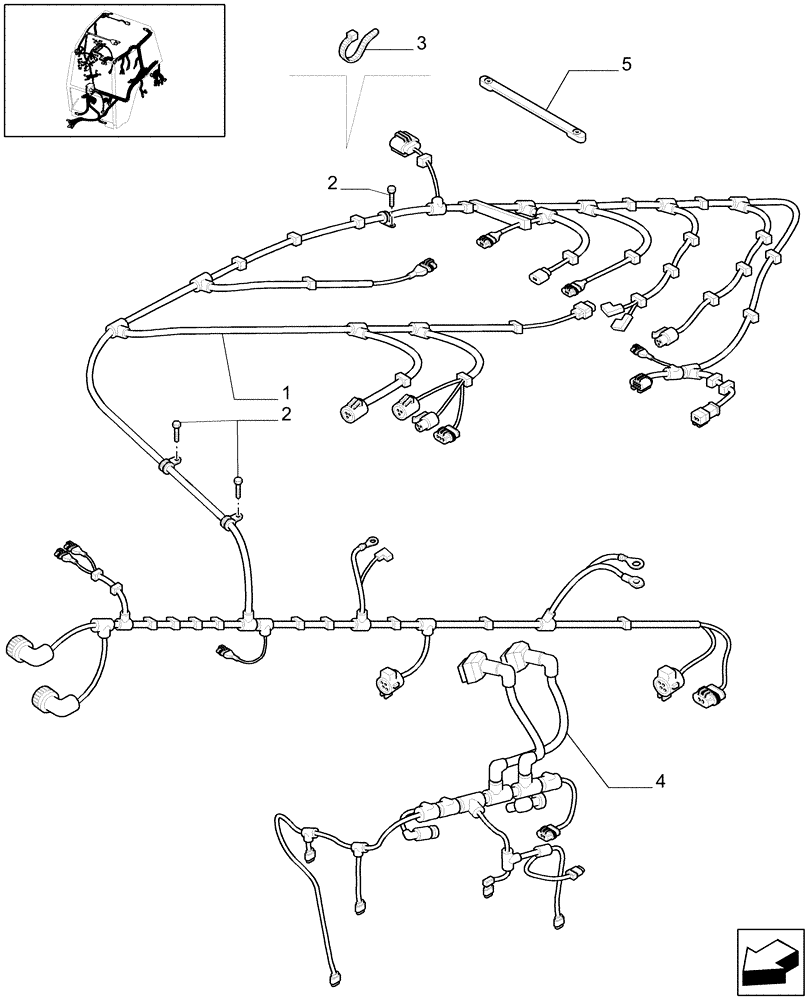

Запчасти Case IH MXU100 (1.91.4[03]) - FRONT MAIN CABLE AND ENGINE CABLE - W/CAB - C5148 (10) - OPERATORS PLATFORM/CAB

1

82035823

WIRE HARNESS

MXU100, MAIN FRONT, Serial Range: -EKP005276/ACP244472

1шт.

1

82035825

WIRE HARNESS

MXU110, MAIN FRONT, Serial Range: -EKP005446/ACP244472

1шт.

1

82035824

WIRE HARNESS

MXU115, MAIN FRONT, Serial Range: -EKP005254/ACP244472

1шт.

1

82035826

WIRE HARNESS

MXU125, MXU135, MAIN FRONT, Serial Range: -EKP005232/ACP244472

1шт.

2

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

5шт.

3

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

4

82034584

WIRE HARNESS

MXU110, ENGINE

1шт.

4

82034585

WIRE HARNESS

MXU125,MXU135, ENGINE

1шт.

5

82034172

CABLE TIE

CABLE STRAP

1шт.
