(1.91.1/01) - (VAR.838) OUTER P.T.O. CONTROL MOUNTED ON MUDGUARDS

Запчасти Case IH MXU100 (1.91.1/01) - (VAR.838) OUTER P.T.O. CONTROL MOUNTED ON MUDGUARDS (10) - OPERATORS PLATFORM/CAB

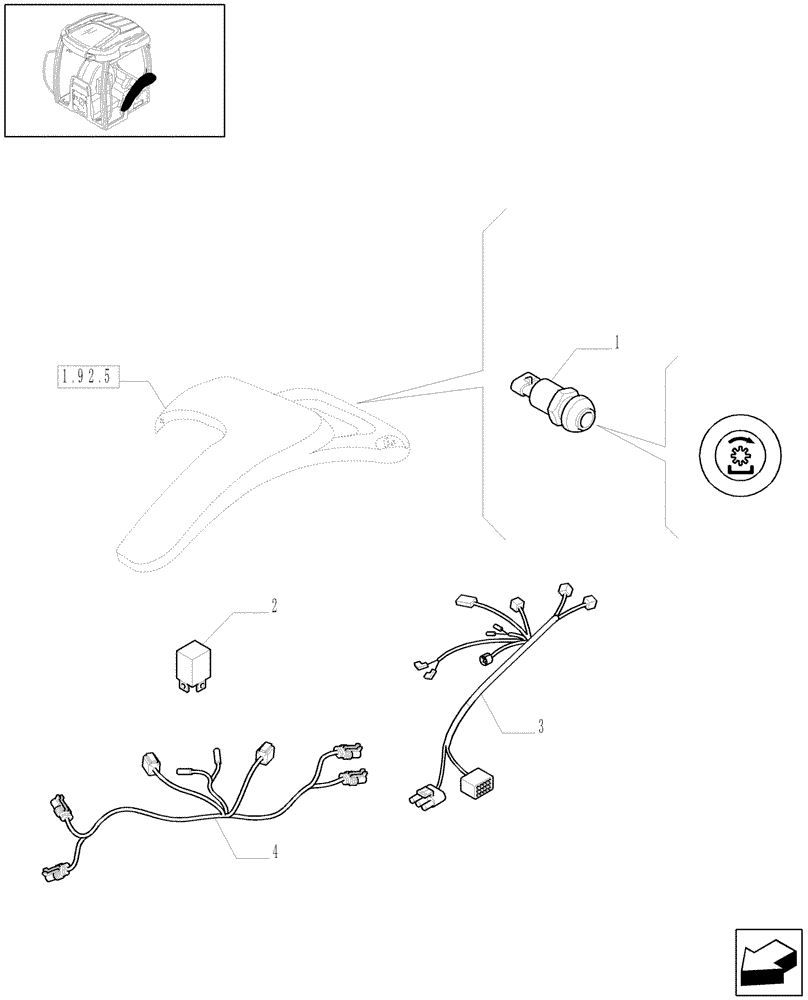

Схема запчастей Case IH MXU100 - (1.91.1/01) - (VAR.838) OUTER P.T.O. CONTROL MOUNTED ON MUDGUARDS (10) - OPERATORS PLATFORM/CAB
3
5
9
1
2
.
1
.
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82025543

PTO SWITCH

EXTERNAL PTO

2шт.

2

82003697

RELAY,12V, 30A

1шт.

3

82035385

HARNESS

REAR FENDER, Serial Range: -C5064

2шт.

VALID FOR MXU110 WITH EQUIP.881 ALSO

1шт.

3

87306946

ELECTRIC CABLE

REAR FENDER, Serial Range: D5064-D5210

2шт.

VALID FOR MXU110 WITH EQUIP.881 ALSO

1шт.

4

87313641

WIRE HARNESS

, Start Serial: D5210

2шт.
