Запчасти Case IH MXU100 (1.91.1[02]) - SWITCH AND RELATED PARTS - C4864 (10) - OPERATORS PLATFORM/CAB

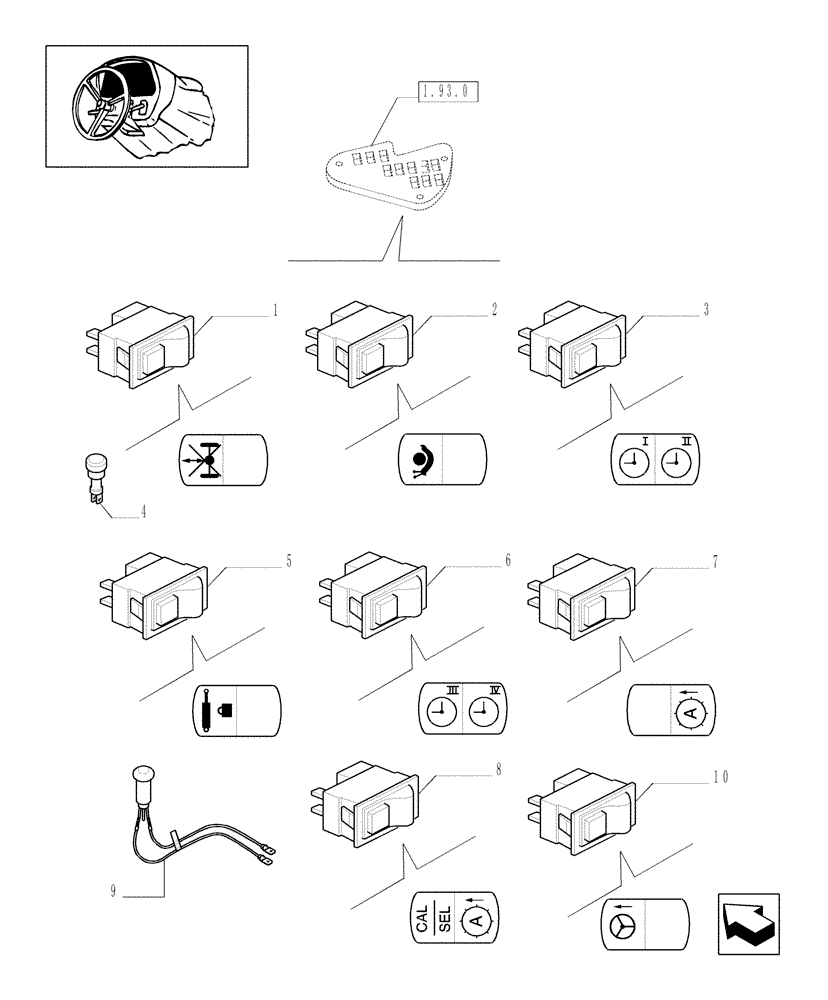

Схема запчастей Case IH MXU100 - (1.91.1[02]) - SWITCH AND RELATED PARTS - C4864 (10) - OPERATORS PLATFORM/CAB
7
1.93.0
6
4
2
9
8
1
3
10
5

Артикул

Название

Примечание

Количество

1

82037373

SWITCH ASSY

Suspension Lock

1шт.

4WD Axle With Suspension, With Terralock, VAR.301/1 - 309/1 - 358/1 - 359/1

1шт.

2

82025841

SWITCH ASSY

Creeper

1шт.

W/Creeper For 24X24, 12X12, 16X16, VAR.100 -112-100/1-100/2

1шт.

3

82030281

SWITCH ASSY

EHR 1 & 2

1шт.

With Electronics Remotes Valves

1шт.

4

82030786

INSTRUMENT LIGHT

EHR Master (Orange)

1шт.

With Electronics Remotes Valves

1шт.

5

82030977

SWITCH ASSY

EHR Lock

1шт.

With Electronics Remotes Valves

1шт.

6

82030282

SWITCH ASSY

EHR 3 & 4

1шт.

With Electronics Remotes Valves

1шт.

7

82035430

SWITCH ASSY

Auto Trans.

1шт.

W/Trans. 16X16 (SPS) and w/enhanced instrumentation for trans 16x16 economy for mxu100, mxu115

1шт.

8

82035432

SWITCH ASSY

Auto Trans & Cal/Sel, MXU100, MXU115

1шт.

With Trans 16X16 Economy

1шт.

9

47057473

INDICATOR

EHR STATUS GREEN

1шт.

With Electronics Remotes Valves

1шт.

9

47057474

INDICATOR

EHR MASTER RED

1шт.

With Electronics Remotes Valves

1шт.

10

82039543

SWITCH ASSY

Fast Steer

1шт.

Fast Steering, VAR. 221-360-636-704

1шт.

Выбрано товаров: 22
