Запчасти Case IH MXU100 (1.91.0/01) - (VAR.725) ANALOG/DIGITAL INSTRUMENT WITH DIFFERENT FUNCTIONS AND SIDE INSTRUMENTS (10) - OPERATORS PLATFORM/CAB

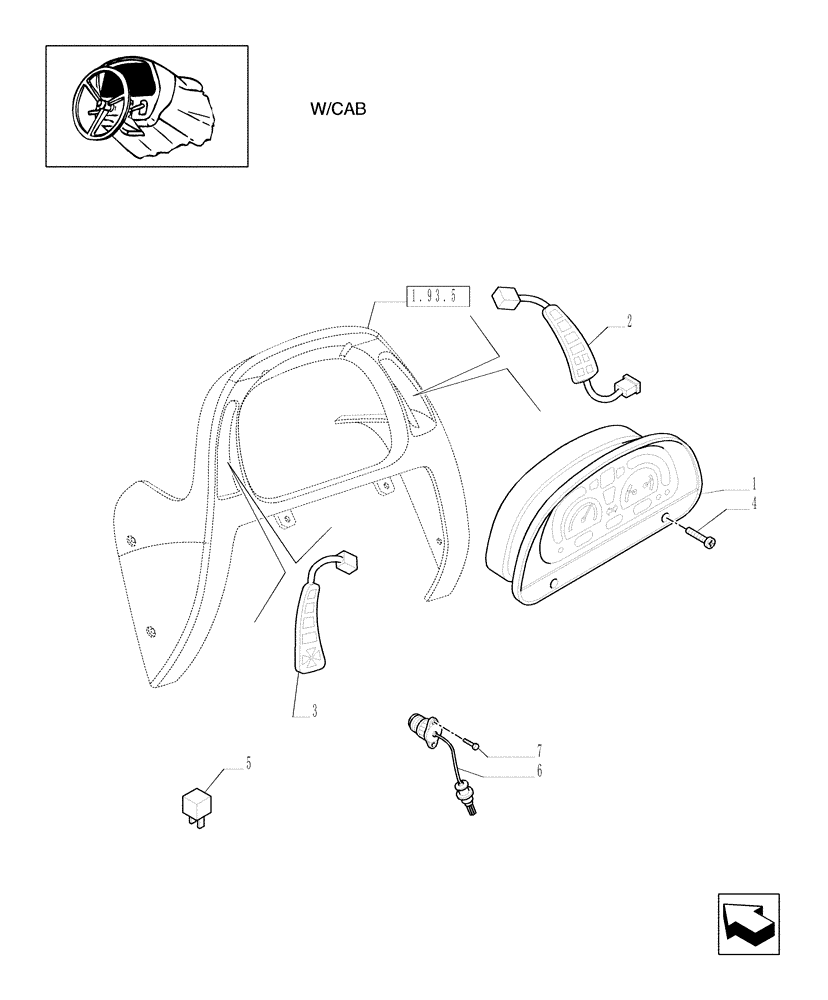

Схема запчастей Case IH MXU100 - (1.91.0/01) - (VAR.725) ANALOG/DIGITAL INSTRUMENT WITH DIFFERENT FUNCTIONS AND SIDE INSTRUMENTS (10) - OPERATORS PLATFORM/CAB
2
1.93.5
4
5
3
6
7
1

Артикул

Название

Примечание

Количество

1

47130106

CLUSTER

1шт.

Valid with enhanced instrumentation for AUTOFEATURES 16X16 for MXU100, MXU115 (Equip.083) also

1шт.

2

47130152

KEYBOARD

RH

1шт.

Valid with enhanced instrumentation for AUTOFEATURES 16X16 for MXU100, MXU115 (Equip.083) also

1шт.

3

47130142

KEYBOARD

LH

1шт.

Valid with enhanced instrumentation for AUTOFEATURES 16X16 for MXU100, MXU115 (Equip.083) also

1шт.

4

82023990

SCREW,Pan, M4 x 20mm, Gr 4.8

4шт.

Valid with enhanced instrumentation for AUTOFEATURES 16X16 for MXU100, MXU115 (Equip.083) also

1шт.

5

82023238

RELAY,12V, 20A

MXU100, MXU115, OMRON

1шт.

Valid with enhanced instrumentation for AUTOFEATURES 16X16 for MXU100, MXU115 (Equip.083) also

1шт.

6

82033470

WIRE HARNESS

RADAR SIGNAL SOCKET

1шт.

7

47057608

SCREW

M4X12

2шт.

Выбрано товаров: 12
