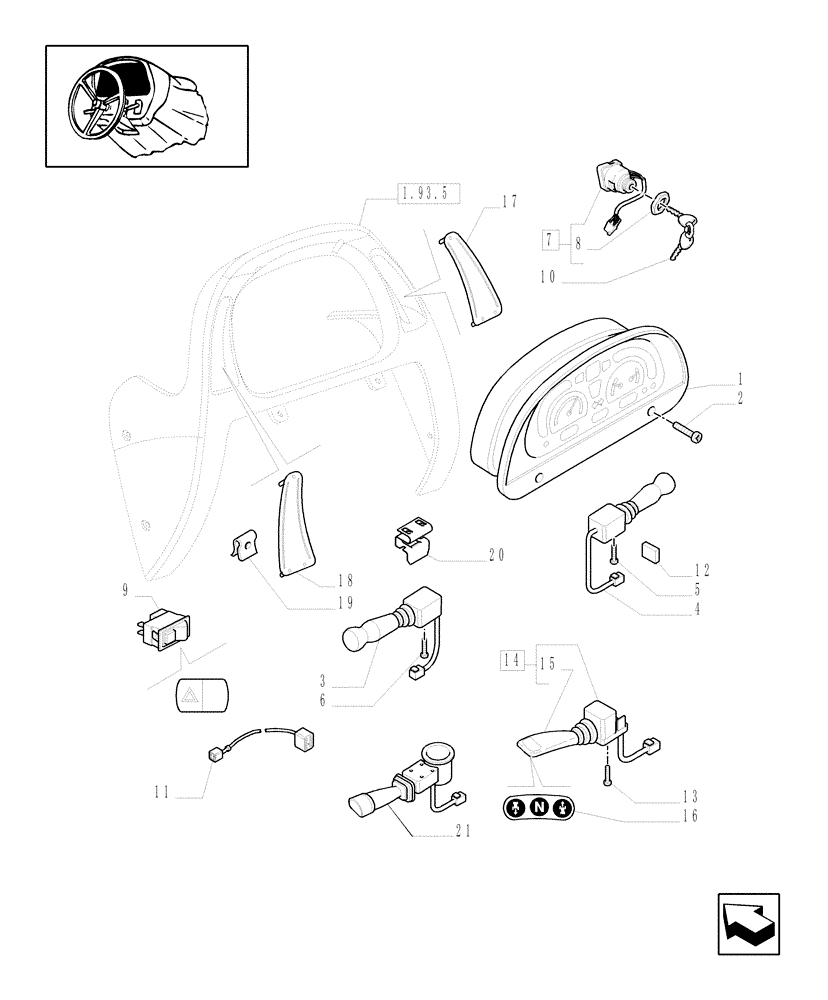

Запчасти Case IH MXU100 (1.91.0) - INSTRUMENT CLUSTER- ANALOGUE/DIGITAL AND SWITCH TOGGLE (10) - OPERATORS PLATFORM/CAB

1

47130135

INSTRUMENT CLUSTER

1шт.

2

82023990

SCREW,Pan, M4 x 20mm, Gr 4.8

M4X20

4шт.

3

87570887

SWITCH ASSY

FLASHER/HEADLIGHTS, Serial Range: -C5960

1шт.

4

87544514

SWITCH ASSY

W/CAB, WASH/WIPE

1шт.

5

83912337

SELF-TAP SCREW,3.5mm OD x 1.3mm Thd x 22mm L

Pan Hd, #6 x M22, W/Cab

3шт.

6

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

3шт.

7

87561528

SWITCH ASSY

1шт.

8

81864297

NUT,M26 x 1.5

1шт.

9

82037324

SWITCH ASSY

1шт.

10

82030144

IGNITION KEY

2шт.

11

82035386

WIRE HARNESS

1шт.

12

82004988

PLUG

L/CAB

1шт.

13

82880745

SCREW,Phillips Drive, Pan HD, M4 x 16mm, Cl 4.8

3шт.

14

82026094

SWITCH ASSY

SHUTTLE LEVER, Serial Range: -C4852

1шт.

14

82035488

SWITCH ASSY

SHUTTLE LEVER, Start Serial: D4852

1шт.

15

82026093

KNOB

, Serial Range: -C4852

1шт.

16

87364176

DECAL

1шт.

17

47057225

DUST CAP

RH

1шт.

18

47057224

DUST CAP

LH

1шт.

19

14227874

SPRING NUT,M4

6шт.

20

87308037

CLIP

2шт.

21

87756698

SWITCH ASSY

, Start Serial: D5960

1шт.
