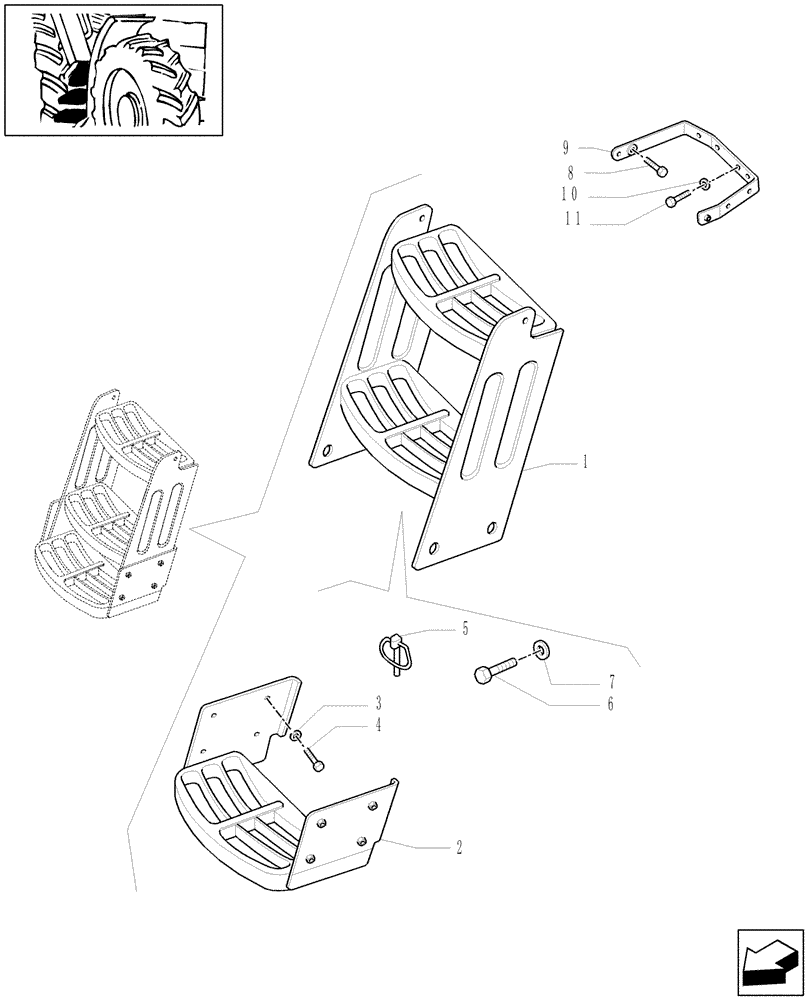

Запчасти Case IH MXU100 (1.90.2) - FOOT STEP (10) - OPERATORS PLATFORM/CAB

1

82038534

STEP

, Serial Range: -C5200

1шт.

Q.TY=1 for models Less Cab; Q.TY=2 for models With Cab and for models Less Cab with VAR.665(RH Step)

1шт.

1

87309018

STEP

, Serial Range: -C5200

1шт.

Only MXU125, MXU135 W/VAR 89.86, 89.98

1шт.

1

87324997

STEP

, Serial Range: D5200-C5350

1шт.

Q.TY=1 for models Less Cab; Q.TY=2 for models With Cab and for models Less Cab with VAR.665(RH Step)

1шт.

1

87520018

STEP

, Start Serial: D5350

1шт.

Q.TY=1 for models Less Cab; Q.TY=2 for models With Cab and for models Less Cab with VAR.665(RH Step)

1шт.

1

87324993

STEP

, Start Serial: D5200

1шт.

Only MXU125, MXU135 W/VAR 89.86, 89.98

1шт.

2

82024936

STEP

1шт.

Q.TY=1 for models Less Cab; Q.TY=2 for models With Cab and for models Less Cab with VAR.665(RH Step)

1шт.

2

87309011

STEP

1шт.

Only MXU125, MXU135 W/VAR 89.86, 89.98

1шт.

3

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

4

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

8шт.

5

81810390

LINCH PIN,11.18mm OD

RH

1шт.

6

11599521

BOLT,Hex, M12 x 45, 8.8

M12X1,75X45, LH

1шт.

7

12648521

WASHER,12.2mm ID x 28mm OD x 4mm Thk

LH

1шт.

8

84147352

BOLT,Shoulder, M10 x 1.5 x 27 mm, Gr 8.8

M10

4шт.

9

87705129

BRACKET

2шт.

9

87324684

BRACKET

1шт.

Only MXU125, MXU135 W/VAR 89.86, 89.98

1шт.

10

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

11

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

8шт.
