(1.48.0/02) - (VAR.437) 98" LONG AXLE FOR STEEL DISK - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS

Запчасти Case IH MXU100 (1.48.0/02) - (VAR.437) 98" LONG AXLE FOR STEEL DISK - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS (05) - REAR AXLE

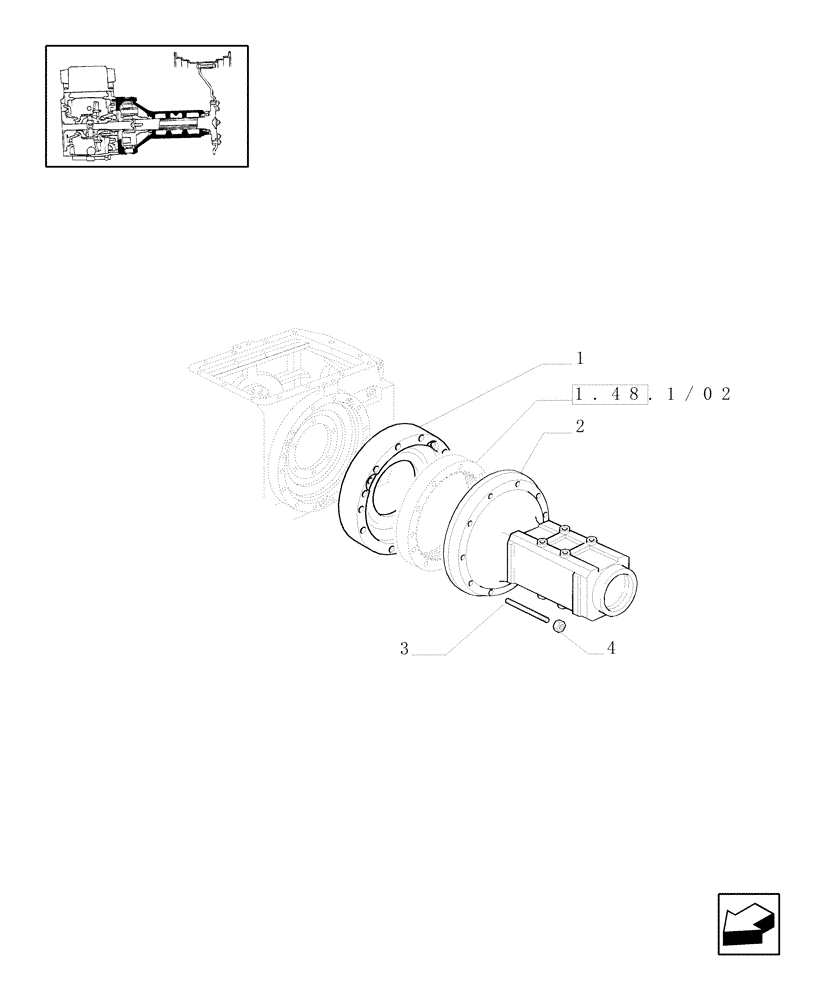

Схема запчастей Case IH MXU100 - (1.48.0/02) - (VAR.437) 98" LONG AXLE FOR STEEL DISK - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS (05) - REAR AXLE
4
3
2
1
1.48.1/02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47125657

SPACER

2шт.

2

47124320

AXLE HOUSING

2шт.

3

13557730

STUD,M14 x 1.5 x 20mm x 145mm, Cl 10.9

M14 x 145

12шт.

3

13557930

STUD,M14 x 1.5 x 20mm x 160mm, Cl 10.9

M14 x 160

12шт.

4

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

24шт.
