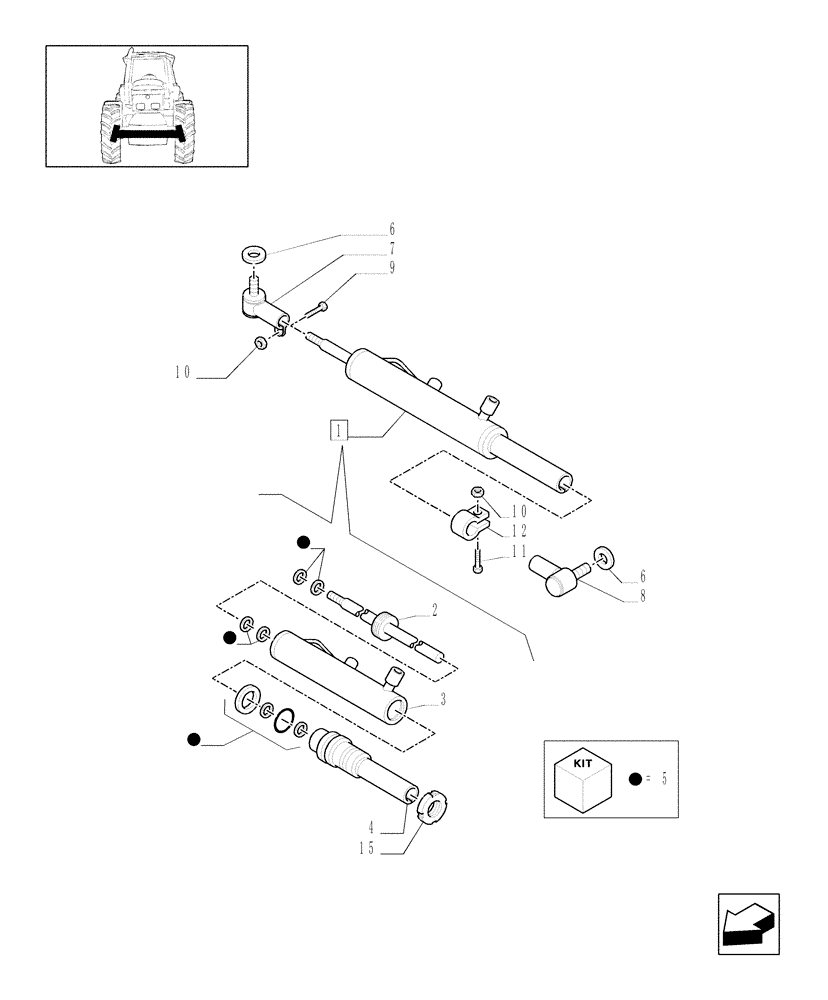

Запчасти Case IH MXU100 (1.41.0/03[03A]) - (VAR.417) 2WD HEAVY DUTY FRONT AXLE - HYDRAULIC STEERING CYLINDER - ASN 216506 (04) - FRONT AXLE & STEERING

1

82037187

STEERING CYLINDER,Double Acting, 25mm Rod, 236.5mm Stroke

1шт.

1

82037187R

REMAN-HYD CYLINDER

MXU100, MXU110, MXU115, All ASN 216506, CASE IH TRACTOR (7/03-)

1шт.

1

82037187C

CORE-HYD CYLINDER

Return Number

1шт.

2

82037191

BRACKET

1шт.

3

82037189

BARREL

1шт.

4

82037190

TUBE,778 mm Length

1шт.

5

82037194

SEAL KIT

1шт.

6

81864101

PROTECTION CAP

2шт.

7

81863813

TRACK ROD END ASSY

1шт.

8

81863815

BALL JOINT,1 1/4" - 12 x 3" L

1шт.

9

80280524

SCREW

Cap, HH, G5, 1/2"-13 x 1-5/8"

1шт.

10

11702911

NUT,M12, Cl 8, ZND

2шт.

11

82851742

BOLT

1/2"-13 x 2-1/2"

1шт.

12

82037182

CLAMP

1шт.

13

82037195

LOCK NUT

1шт.
