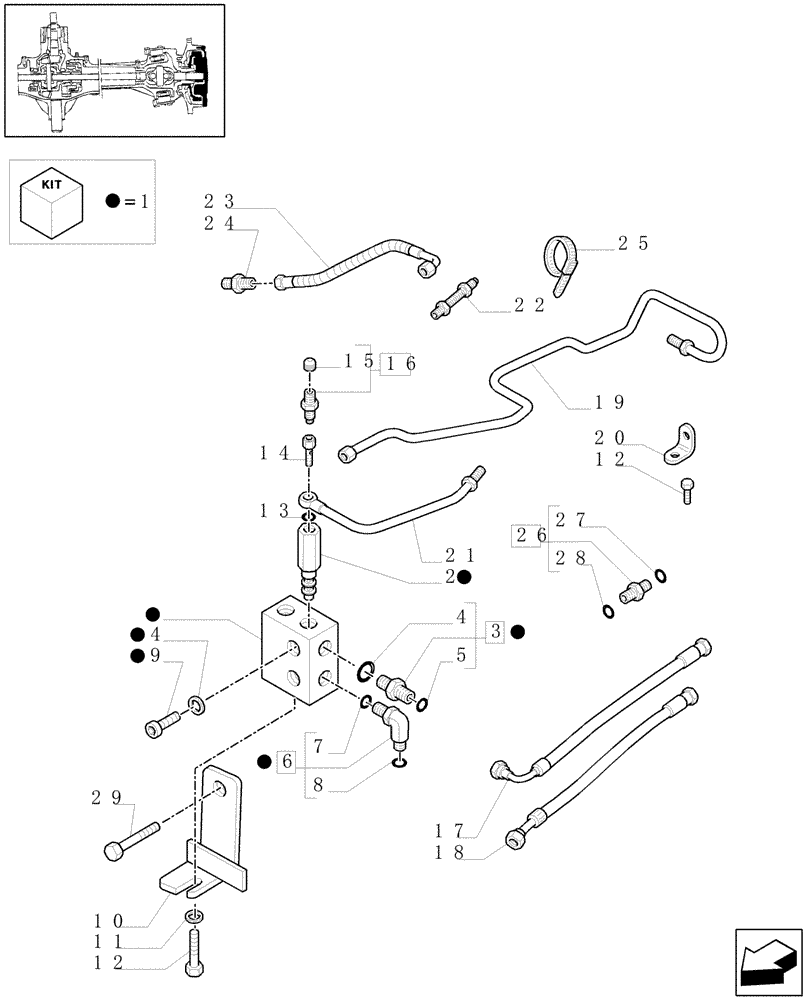

Запчасти Case IH MXU100 (1.40.4/15) - (VAR.592-623-639-652) FRONT HPL AND PTO W/SHAFT (6 SPLINES) W/FRONT BRAKES - BRAKES (04) - FRONT AXLE & STEERING

1

47057695

BRAKE VALVE

ASSY

1шт.

2

84153572

VALVE, PRESSURE CONT

1шт.

3

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

M16x1.5, 11/16-16

1шт.

4

14437885

O-RING,13.30mm ID x 2.40mm

3шт.

5

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

6

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

1шт.

7

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

2шт.

10

87314967

BRACKET

1шт.

11

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

12

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

13

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

12 x 17 x 5

1шт.

14

82036875

BANJO BOLT

1шт.

15

81871475

CAP,4.7mm ID x 13mm OD x 10mm L

1шт.

16

81874592

BLEEDER,M12 x 1 x 15.50mm

1шт.

17

47057670

HOSE

960MM, 11/16"-16

1шт.

18

47057671

HOSE

960MM, 11/16-16

1шт.

19

47057657

TUBE

MXU100, MXU110

1шт.

19

47057658

TUBE

MXU115, MXU125, MXU135

1шт.

20

47057231

BRACKET

1шт.

21

47057669

TUBE

1шт.

22

82016624

ADAPTER

1шт.

23

82036030

HOSE,15.88mm ID x 550mm L, SAE 100R2

1шт.

24

82015298

HYD CONNECTOR,1/2"-20 - M18 x 1.5

M18x1.5, 1/2-20

1шт.

25

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.

26

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

27

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

28

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

16214624

SCREW,Hex, M14 x 1.5 x 50mm, Cl 8.8

1шт.
