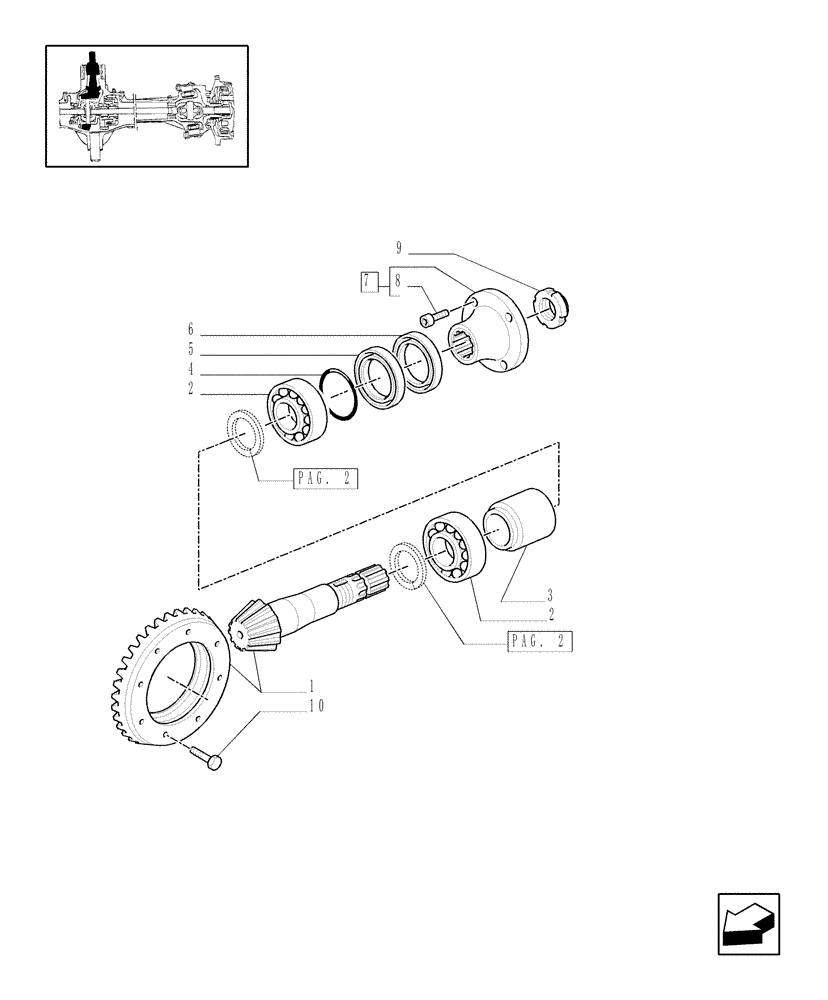

Запчасти Case IH MXU100 (1.40.2/06[01]) - (VAR.301/1-358/1) 4WD FRONT AXLE WITH SUSPENSIONS AND TERRALOCK - BEVEL GEAR PAIR (04) - FRONT AXLE & STEERING

1

5197678

BEVEL GEAR

RATIO 10/34

1шт.

2

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

41.275 x 82.550 x 26.543

2шт.

3

5197256

SPACER

1шт.

4

14454480

O-RING,1.301" ID x 0.07" Width

1шт.

5

5111415

OIL SEAL,57mm ID x 85mm OD x 12mm Thk

57 x 85 x 12

1шт.

6

5109309

SEAL,57.2mm ID x 85mm OD x 1mm Thk

1шт.

7

5197259

FLANGE

1шт.

8

5190329

SCREW

, Serial Range: -C5536

4шт.

8

87550808

PIN,12.5mm OD x 37mm L

, Start Serial: D5536

4шт.

9

5197296

RING NUT

1шт.

10

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.
