Запчасти Case IH MXU100 (1.40.1/02[01A]) - (VAR.301-358) 4WD FRONT AXLE WITH TERRALOCK - STEERING AXLE - D5196 (04) - FRONT AXLE & STEERING

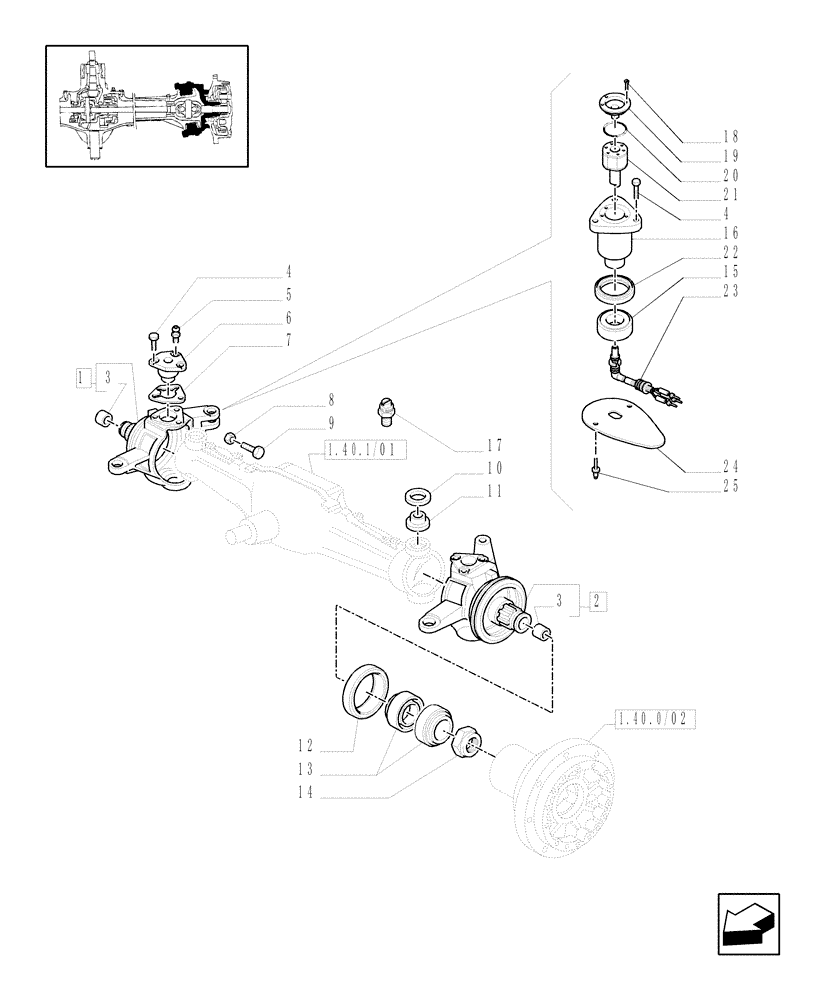

Схема запчастей Case IH MXU100 - (1.40.1/02[01A]) - (VAR.301-358) 4WD FRONT AXLE WITH TERRALOCK - STEERING AXLE - D5196 (04) - FRONT AXLE & STEERING
20
2
22
4
0
3
4
19
15
5
1
17
6
16
1/
1.
8
12
25
1
2
0
3
9
40.
21
14
11
0/
18
4
0.
10
23
13
7
24
1.

Артикул

Название

Примечание

Количество

1

5171556

STEERING KNUCKLE,RH

RH

1шт.

1

5171556R

REMAN-AXLE

MXU100, MXU110, MXU115, MXU125, MXU135, All CASE IH TRACTOR, RH (7/03-)

1шт.

1

5171556C

CORE-AXLE

Return Number

1шт.

2

5171554

STEERING KNUCKLE,LH

LH

1шт.

2

5171554R

REMAN-AXLE

MXU100, MXU110, MXU115, MXU125, MXU135, All CASE IH TRACTOR, LH (7/03-)

1шт.

2

5171554C

CORE-AXLE

Return Number

1шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

42 x 46 x 28

2шт.

4

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

5

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

3шт.

6

5137239

BALL STUD

BALL PIN

3шт.

7

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

7

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

8

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

9

5167638

SCREW

2шт.

10

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

4шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

12

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

165X190X15.5/16.5

2шт.

13

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

4шт.

14

5142020

NUT,Hex, M75 x 2

M75 x 20

2шт.

15

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

16

87309301

BALL STUD

BALL PIN

1шт.

17

5115055

SWITCH ASSY

Trans. Oil

1шт.

18

10384911

SCREW,Slotted Countersunk, M5 x 12mm

3шт.

19

87309292

PIN

, Serial Range: -C5731

1шт.

19

87574551

PIN

, Start Serial: D5731

1шт.

20

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

21

87303761

SENSOR

Steering, Serial Range: -C5735

1шт.

21

87612538

SENSOR

Steering, Serial Range: D5735-C5731

1шт.

21

87627614

SENSOR

, Start Serial: D5731

1шт.

22

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

23

87303769

ELEC CONNECTOR

, Serial Range: -C5731

1шт.

23

87627623

ELEC CONNECTOR,Male

, Start Serial: D5731

1шт.

24

87315098

SHIELD

1шт.

25

14643091

RIVET

2шт.

Выбрано товаров: 34
