Запчасти Case IH MXU100 (1.40.1/01[02]) - (VAR.358) 4WD FRONT AXLE WITH TERRALOCK - BOX (04) - FRONT AXLE & STEERING

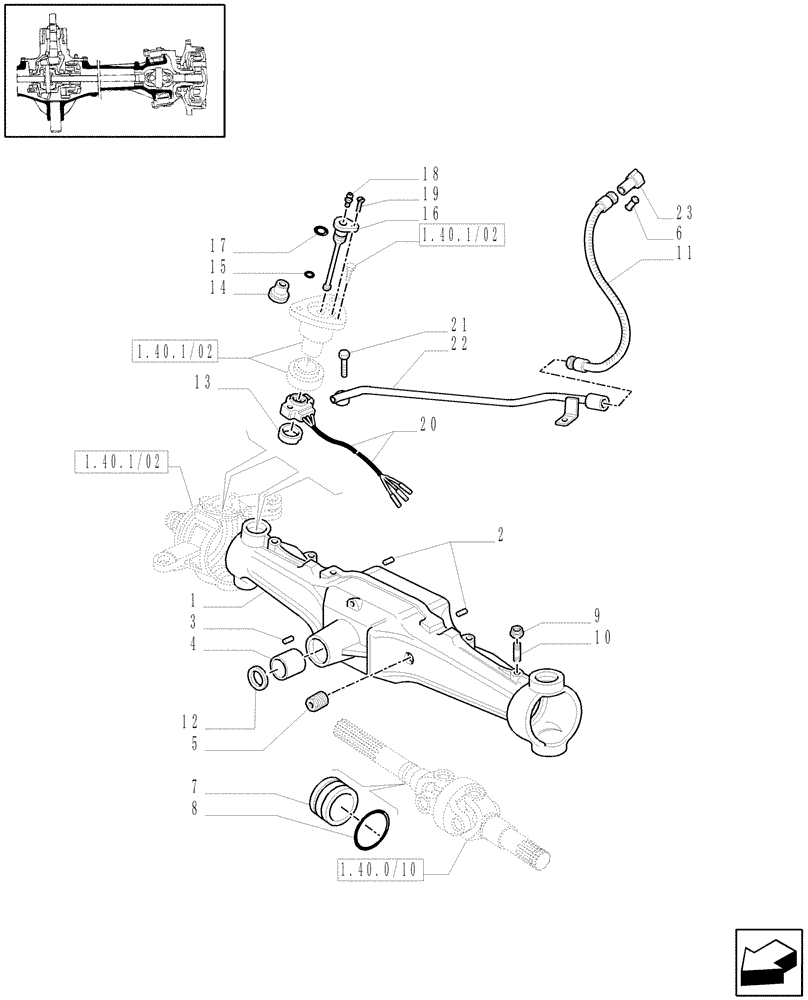

Схема запчастей Case IH MXU100 - (1.40.1/01[02]) - (VAR.358) 4WD FRONT AXLE WITH TERRALOCK - BOX (04) - FRONT AXLE & STEERING
3
2
15
5
21
4
7
1.40.0/10
20
19
6
11
16
22
14
1
10
12
17
18
13
1.40.1/02
23
8
1.40.1/02
9
1.40.1/02

Артикул

Название

Примечание

Количество

1

5183498

AXLE HOUSING

, Serial Range: -C5196

1шт.

1

87309763

AXLE HOUSING

Incl. 2, Serial Range: D5196-C5731

1шт.

1

87652088

AXLE HOUSING

Incl. 2-4, Start Serial: D5731

1шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

14326211

PLUG,M22 x 1.50, R50, ZND

Magnetic

1шт.

6

82918419

PLUG

1шт.

7

5164362

BUSHING

, Serial Range: -C5243

2шт.

7

87371254

BUSHING,68mm ID x 85mm OD x 45mm L

, Start Serial: D5243

2шт.

8

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

80 x 2.62, Serial Range: -C5243

2шт.

8

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

, Start Serial: D5243

2шт.

9

16101524

NUT,M12 x 1.25, Cl 10

2шт.

10

87309002

SET SCREW

M12X1,25X67

2шт.

11

82016109

FLEXIBLE SHEATH

1шт.

12

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

13

5168958

SUPPORT

, Serial Range: -C5196

1шт.

14

5175211

BUSHING,10mm ID x 23mm OD x 17mm L

, Serial Range: -C5196

1шт.

15

14452780

O-RING,0.239" ID x 0.07" Width

, Serial Range: -C5196

1шт.

16

5191230

PIN

, Serial Range: -C5196

1шт.

17

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

, Serial Range: -C5196

1шт.

18

13406811

LUBE NIPPLE,45 Degree, 1/4" NPT x .81" lg

, Serial Range: -C5196

1шт.

19

10384911

SCREW,Slotted Countersunk, M5 x 12mm

M5 x 12, Serial Range: -C5196

1шт.

20

82019691

SENSOR

Steering Angle, Serial Range: -C5196

1шт.

21

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

22

5199883

SHIELD

1шт.

23

82918426

ELEC CONNECTOR,Female

Incl. Ref. 24

1шт.

Выбрано товаров: 27
