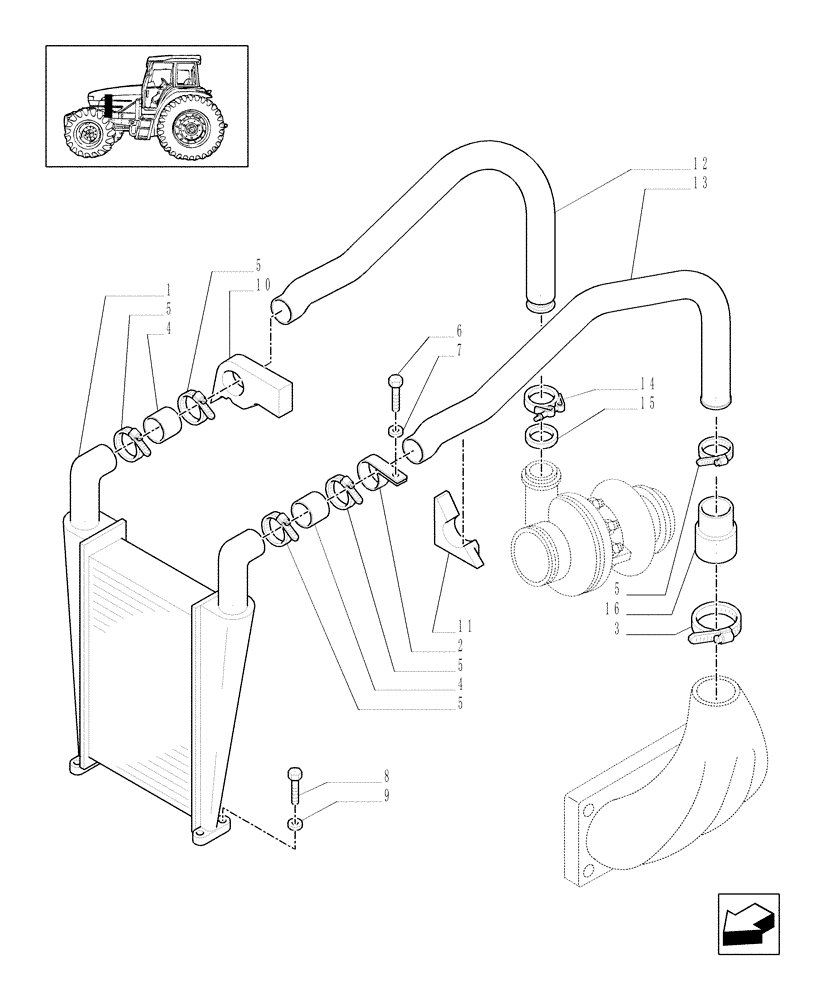

Запчасти Case IH MXU100 (1.19.6) - INTERCOOLER AND PIPES (02) - ENGINE EQUIPMENT

1

82031933

INTERCOOLER

1шт.

2

82024188

CLAMP

1шт.

3

82036354

HOSE CLAMP,70mm - 90mm

1шт.

4

82021470

HOSE,57.10 mm ID x 65.00 mm

2шт.

5

82036351

HOSE CLAMP,50 - 70mm X 14.5mm

5шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

8

11107021

BOLT,Hex, M10 x 45mm, Cl 8.8

4шт.

9

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

10

87325639

SEAL

1шт.

11

82027368

SEAL

1шт.

12

82033018

TUBE

1шт.

13

82025955

TUBE

1шт.

14

82033570

CLAMP,60mm

1шт.

14

87524287

CLAMP

1шт.

15

14459081

O-RING,1.737" ID x 0.103" Width

1шт.

16

82036019

INTAKE AIR HOSE,57.10 mm ID, 76.00 mm ID x 90.00 mm, SAE J20R4 CLASS C

1шт.
