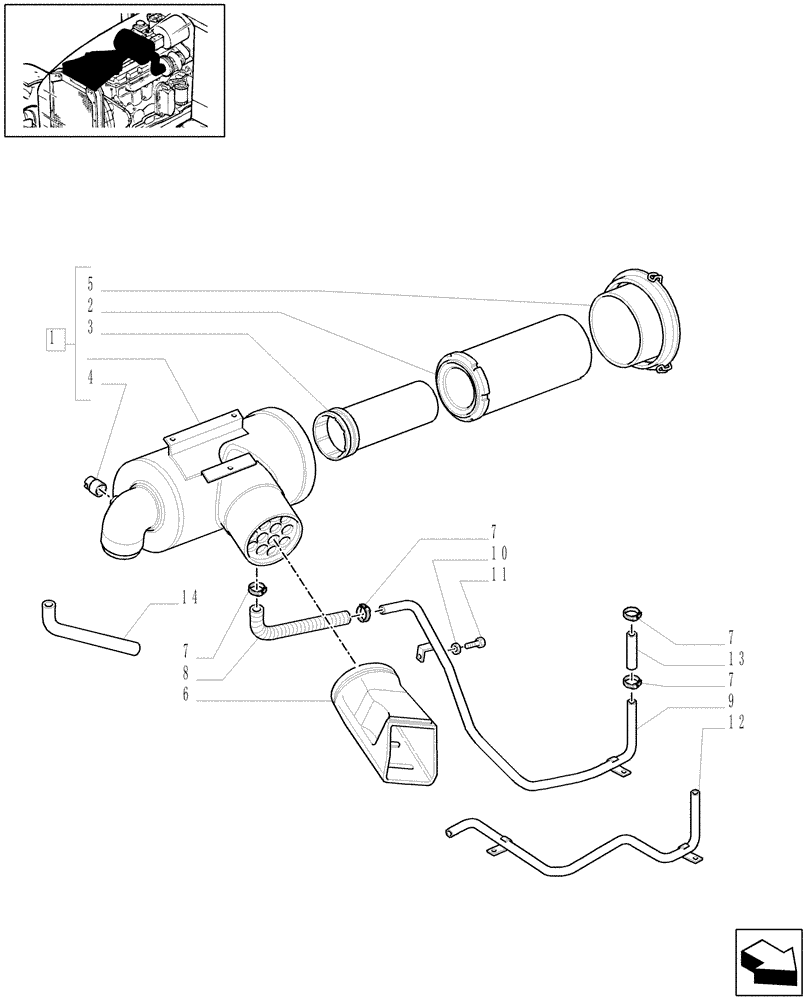

Запчасти Case IH MXU100 (1.19.1/01[01]) - (VAR.197-198) AIRCLEANER W/PRECLEANER (02) - ENGINE EQUIPMENT

1

82034611

AIR CLEANER

1шт.

2

82034614

AIR FILTER

Outer

1шт.

3

82034608

AIR FILTER

Inner

1шт.

4

82029621

INDICATOR

1шт.

5

87301832

COVER

1шт.

6

87326318

AIR DUCT

1шт.

7

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

4шт.

8

82029330

FLEXIBLE HOSE,33.00 mm ID x 300.00 mm

, Serial Range: -C5323

1шт.

9

82039271

TUBE

(VAR.198)

1шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

11

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

12

82039272

TUBE

W/Cab, (VAR.197)

1шт.

With Loader

1шт.

13

82036395

FLEXIBLE HOSE,33.00 mm ID x 140.00 mm

1шт.

14

87396929

LARGE HOSE

HOSE,LARGE, Start Serial: D5323

1шт.
