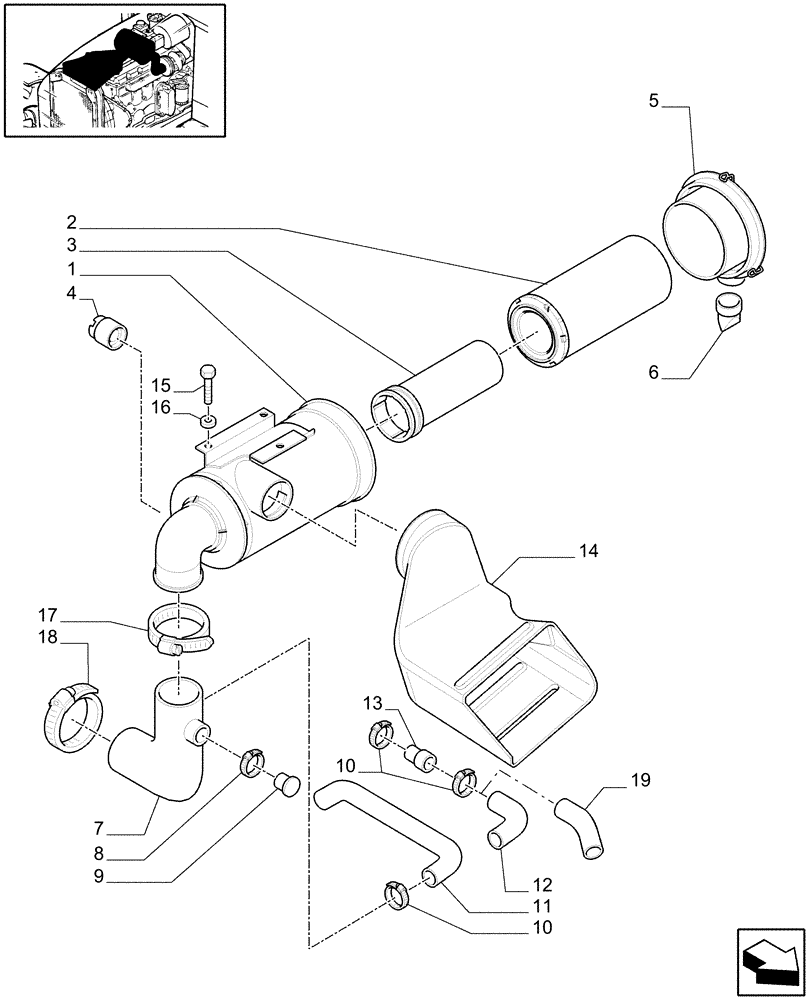

Запчасти Case IH MXU100 (1.19.1[01]) - DRY AIR FILTER - PIPES (02) - ENGINE EQUIPMENT

1

82021432

AIR CLEANER

ASSY, Incl.2-6

1шт.

2

82034605

AIR FILTER

Outer

1шт.

3

82034608

AIR FILTER

Inner

1шт.

4

82029621

INDICATOR

1шт.

5

87301829

COVER

1шт.

6

87301825

DUST VALVE

1шт.

7

82027768

INTAKE AIR HOSE,76.00 mm ID, 102.00 mm ID, SAE J200

1шт.

8

13387470

HOSE CLAMP,31mm - 34mm

34MM

1шт.

8

13387470

HOSE CLAMP,31mm - 34mm

1шт.

Only for VAR. 178, 385

1шт.

9

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

10

82039345

HOSE CLAMP,25mm - 40mm, Worm Gear

22-32MM

3шт.

11

82033117

FLEXIBLE HOSE,22.23 mm ID x 250.00 mm, SAE R2 Type 2

MXU110

1шт.

12

82033116

FLEXIBLE HOSE,22.23 mm ID x 86.00 mm, SAE 30R2 Type 2

MXU100, Serial Range: -C5494

1шт.

13

82029355

ADAPTER

1шт.

14

87326358

AIR DUCT

1шт.

15

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

16

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

17

82012733

COLLAR

104-138MM

1шт.

18

82012731

HOSE CLAMP,77mm - 95mm, Worm Gear

77-95MM

1шт.

19

87534950

FLEXIBLE HOSE,22.23 mm ID x 93.00 mm, SAE 30R2

, Start Serial: D5494

1шт.
