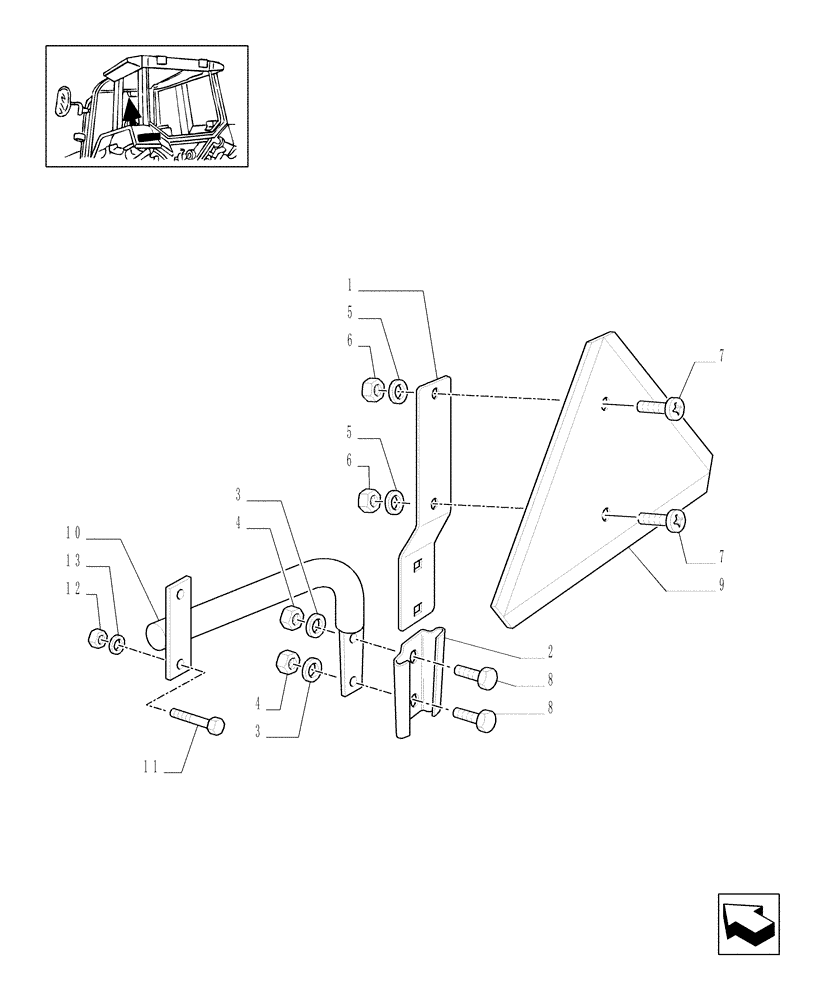

Запчасти Case IH MXU100 (1.99.3[01]) - (VAR.759) SLOW MOVING VEHICLE SIGN (W/CAB) (10) - OPERATORS PLATFORM/CAB

1

81864740

BRACKET

1шт.

2

5148517

SUPPORT

1шт.

3

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

16100821

NUT,M8, Cl 10

2шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

7

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

9

82034583

WARNING TRIANGLE

1шт.

10

82025112

BRACKET

1шт.

11

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

12

12574211

NUT,M6 x 1, Cl 8

2шт.

13

14496404

WASHER,M6 x 12 x 2 Thk

2шт.
