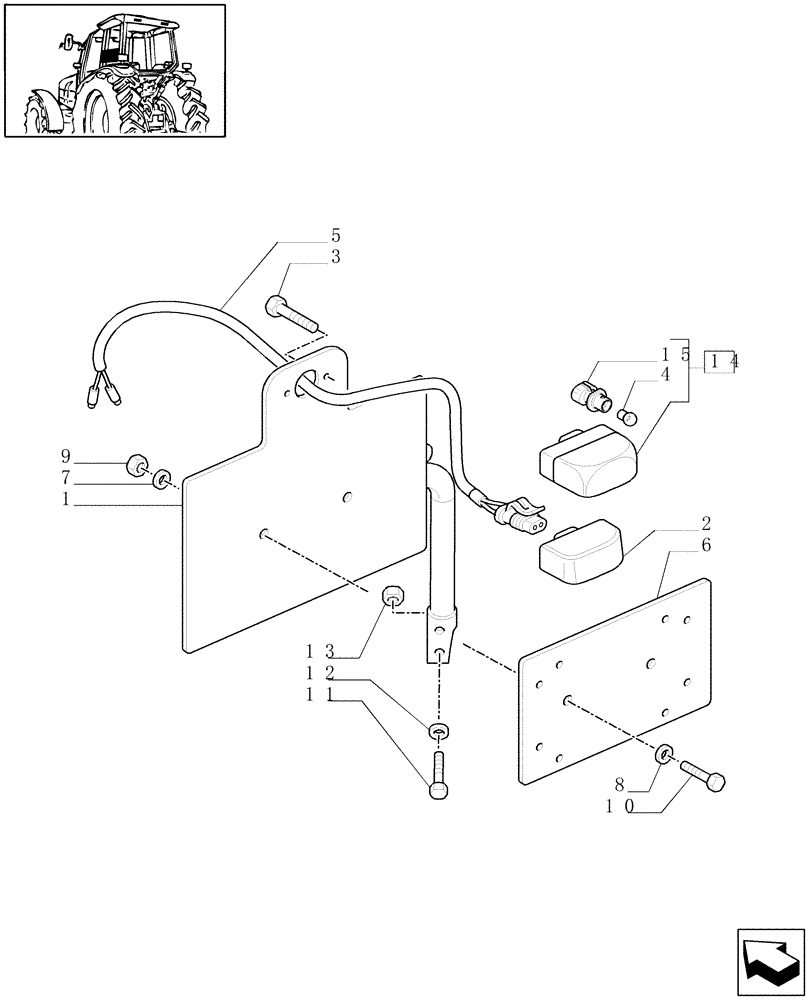

Запчасти Case IH MXU100 (1.98.3/01[01A]) - (VAR.965) LICENSE PLATE LAMP & SUPPORT, MOUNTING ON MUDGUARD (W/CAB) - D5060 - C6560 (10) - OPERATORS PLATFORM/CAB

1

82036417

BRACKET

1шт.

2

82023578

NUMBER PLATE LAMP

1шт.

For MXU100, MXU110 only

1шт.

3

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

2шт.

4

14144190

BULB,W5W, 12V, 5W

12V, 5W

1шт.

For MXU115, MXU125, MXU135 only

1шт.

5

82035389

WIRE HARNESS

LICENSE PLATE

1шт.

6

5170366

PLATE

1шт.

7

12035670

LOCK WASHER

M6

2шт.

For MXU100, MXU110 only

1шт.

7

10571579

LOCK WASHER,M6

2шт.

For MXU115, MXU125, MXU135 only

1шт.

8

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

4шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

10

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

2шт.

For MXU100, MXU110 only

1шт.

10

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

M6x20

2шт.

For MXU115, MXU125, MXU135 only

1шт.

11

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

12

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

13

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

14

87301999

NUMBER PLATE LAMP

1шт.

For MXU115, MXU125, MXU135 only

1шт.

15

87304742

HOLDER

1шт.

For MXU115, MXU125, MXU135 only

1шт.
