(1.96.2/17[01]) - (VAR.221/1-633) 3 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER (NAR) - JOYSTICK

Запчасти Case IH MXU100 (1.96.2/17[01]) - (VAR.221/1-633) 3 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER (NAR) - JOYSTICK (10) - OPERATORS PLATFORM/CAB

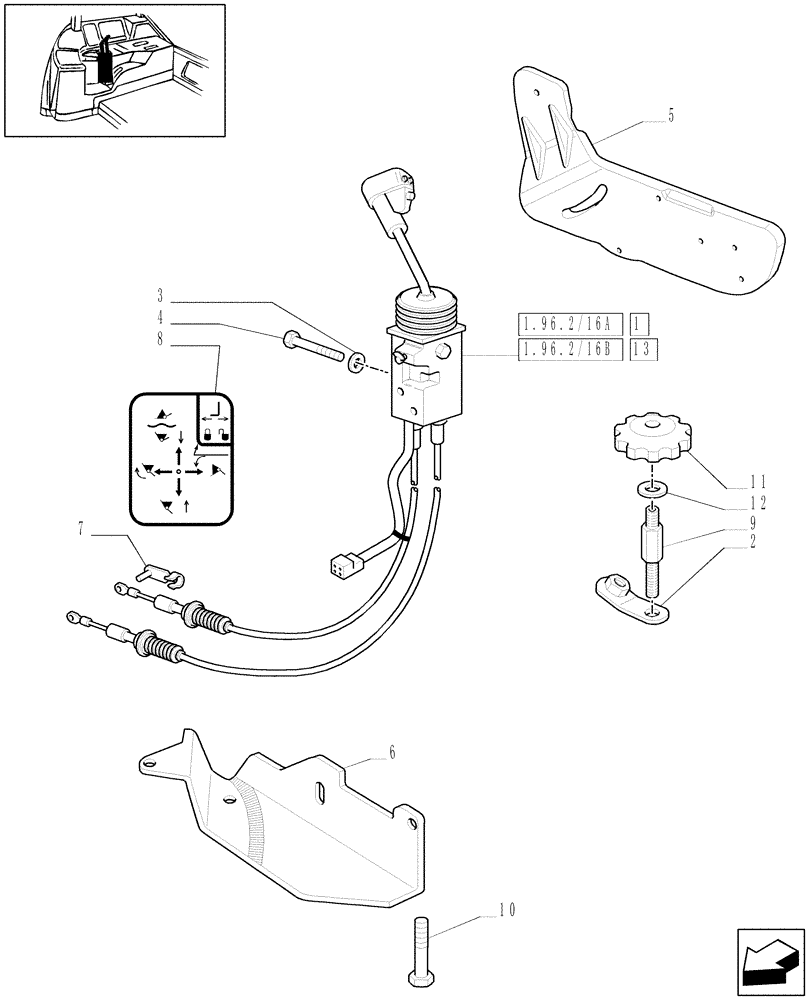

Схема запчастей Case IH MXU100 - (1.96.2/17[01]) - (VAR.221/1-633) 3 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER (NAR) - JOYSTICK (10) - OPERATORS PLATFORM/CAB
3
1.96.2/16b
13
12
10
4
9
8
6
1.96.2/16a
2
1
5
7
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82037037

LEVER ASSY & KNOB

3 Function, Serial Range: -ACP284445

1шт.

87302732R

REMAN-JOYSTICK

MXU100, MXU110, MXU115, MXU125, MXU135, All (7/03) BSN ACP284445, REMAN FOR NEW P/N'S 82037037 & 87302732,

1шт.

87302732C

CORE-JOYSTICK

Return Number

1шт.

2

82035556

BRACKET

1шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

16044924

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

2шт.

5

82032615

BRACKET

1шт.

6

82026112

BRACKET

1шт.

7

82019805

CLEVIS

2шт.

8

82022510

PIN,4.72mm OD x 15.5mm L

2шт.

9

82032760

SPACER,7/16" - 20

1шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

11

82032632

KNOB

1шт.

12

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

13

87302732

JOYSTICK

3 Function, Start Serial: ACP284446

1шт.

87302732R

REMAN-JOYSTICK

MXU100, MXU110, MXU125, MXU115, MXU125, MXU135, All (7/03) ASN ACP284446, Reman For New P/N's 82037037 & 87302732

1шт.

87302732C

CORE-JOYSTICK

Return Number

1шт.
